Air Temperature Sensor

Part No: #54002

OVERVIEW

The Delco air temperature sensor is an analogue sensor with a general working range of 0 to 110 °C.

SPECIFICATIONS

The Delco air temperature sensor is an analogue sensor with a 0 to 5 V output (working range is generally 0.5 V to 4.5 V).
The sensor signal wire can be used with any Analogue Temperature (AT) input on compatible devices.
Working range of 0 to 110 °C.
19 mm Hex.
M14 x 1.5 thread.

COMPATIBILITY

All MoTeC ECUs
All MoTeC Dash/Enclosed loggers

CALIBRATION

Using M1 Tune

For all M1 ECU's

Use the predefined calibration: GM Delphi 25037388.1.0

Using the Display/Logger Manager

For all Dash/Loggers.

Use the predefined calibration: Delco Manifold Air Temp.

Manual Calibration

°C	-40	-30	-20	-10	0	10	20	30	40	50
V	4.902	4.858	4.782	4.660	4.472	4.204	3.848	3.416	2.936	2.443

°C	60	70	80	90	100	110	120	130	140	150
V	1.980	1.575	1.235	0.960	0.745	0.578	0.452	0.355	0.280	0.223

DIMENSIONS

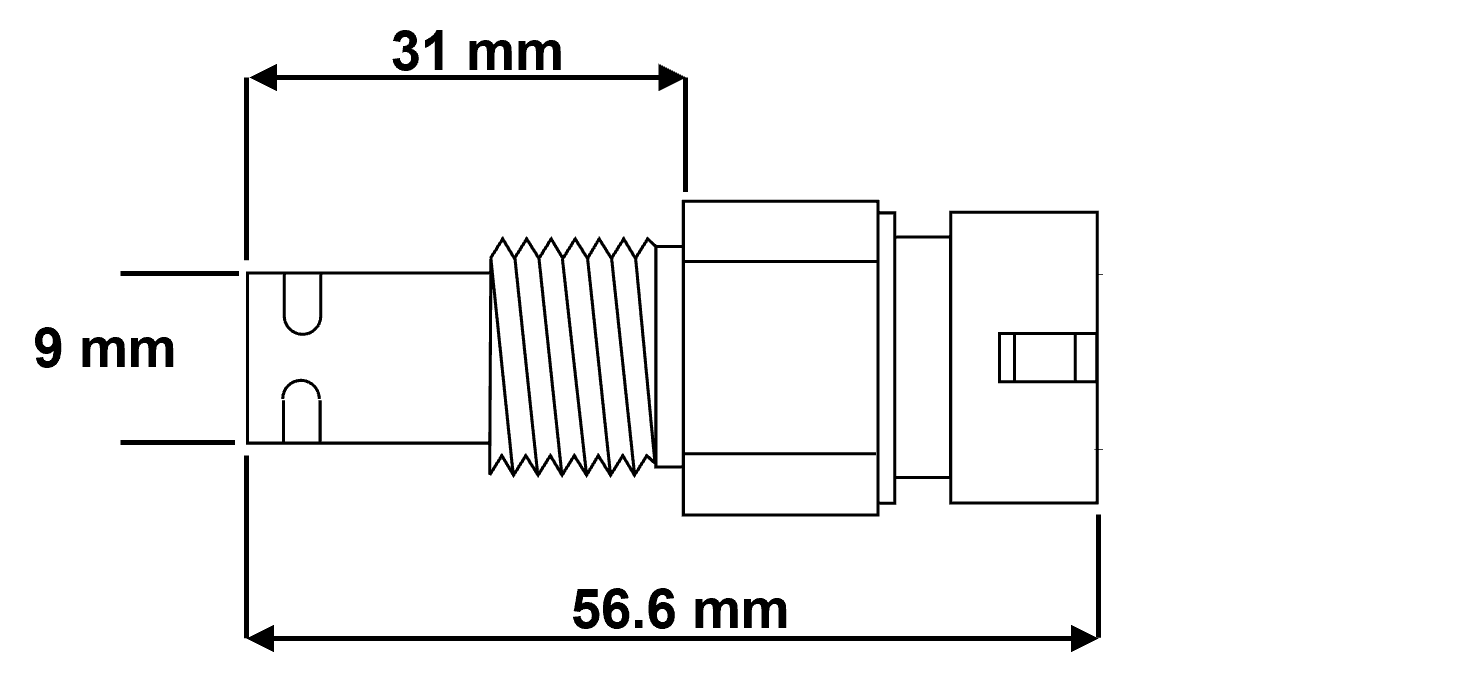

Dimensions in mm

PINOUT

2 Pin Connector

Mating connector # 64001

Connection is to a 0 V sensor ground, and is to the same device that is reading the signal.
Both the 0 V and signal connection have no specific polarity and can be wired either way.

PURCHASING

If you are interested in purchasing this product contact an Authorised MoTeC Dealer.
