The C127 Race Display Kit is a cost-effective, full colour, plug and play solution that offers professional level features without the hassle of a customised installation. It provides a complete, race-ready display system that can be adapted and expanded to suit various applications.

The C127 in this kit can be upgraded to a logger at any time, with both USB and internal logging options available.

The display can be fully customised using the optional Display Creator software, and can incorporate live video from an on-board camera input.

• High resolution colour LCD display
• Optional 120 MB internal logging and USB logging
• Controller (with C127 I/O Upgrade – optional)
• Display size 178 mm (7")
• High brightness for sunlight readability
• Displayed channels, labels and colours are configurable on 10 supplied layouts and 16 colour schemes
• 48 user-defined, scrollable message lines with programmable overrides
• 3 programmable modes with customisable labels, e.g. Practice, Warm-Up and Race
• 16 full colour (RGB) LEDs; colour, function and intensity are fully programmable
• Suitable for cars, marine and industrial applications
• Supports Wideband Lambda from MoTeC PLMs or LTCs
• Easily integrates with MoTeC CAN based products such as GPS, shift lights, ECUs and expanders. Full I/O expansion is available with use of E888 and E816 expanders.
• GPS Lap Timing
• Supports T2 Telemetry (optional)
• Composite video inputs allows for live on-screen footage, for example from a rear view camera.

Note: Some part numbers have recently changed.

18069 – C127 - COLOUR DISPLAY LOGGER

61260 – C127 - ACCESSORY KIT WITH LOOM containing:

• 41304 – GPS L10 10Hz 2.8M
• 61221 – TWO BUTTON LOOM
• 61225 – NETWORK CABLE RJ45 1.5 METRE
• 62204 – C127 RACE LOOM TERMINATED

• 29800: C127 I/O
• 29818: C127 120 MB LOGGING
• 29814: C127 USB LOGGING (120 MB upgrade required)
• 29816: C127 DISPLAY CREATOR
• 29820: C127 PRO ANALYSIS
• 29823: C127 T2 TELEMETRY

• 61279 – CABLE USB LOGGING 1.5 M (PANEL MOUNT)

  This cable is required for USB Logging

• 61280 – MOTEC 32 GB DATA PLUG
• 61292 – 32 GB USB3 FLASH DRIVE
• 61402 – 32 GB AUTOSPORT USB DATA PLUG
• 61403 – CABLE AUTOSPORT USB LOGGING 1.5 M

61197 – OBD-II TO DISPLAY LOOM This loom connects the C127 to a factory OBD-II port, enabling vehicles built in 2007 onwards to easily use the kit with no other wiring requirements. Plug one end into the the OBD-II port, and the other into the C127 Race Loom ECU connector.
61198 – Using this loom, the kit can be installed into an MX00/M84 equipped car without custom wiring. Plug the AMP connector into the ECU download port, and the other end into the C127 Race Loom ECU connector.
61199 – RS232 ECU TO DISPLAY LOOM When using the kit with RS232 based ECUs, plug this loom into your D9 download cable, and connect the other end into the C127 Race Loom ECU connector. Additional adapters may be required in some instances.
61259 – C125 INPUT LOOM With the C127 I/O upgrade (#29800), this loom provides an easy way to add extra inputs to your Race Loom. Eight 2 metre flying leads add 6 AV and 2 AT inputs to your system.

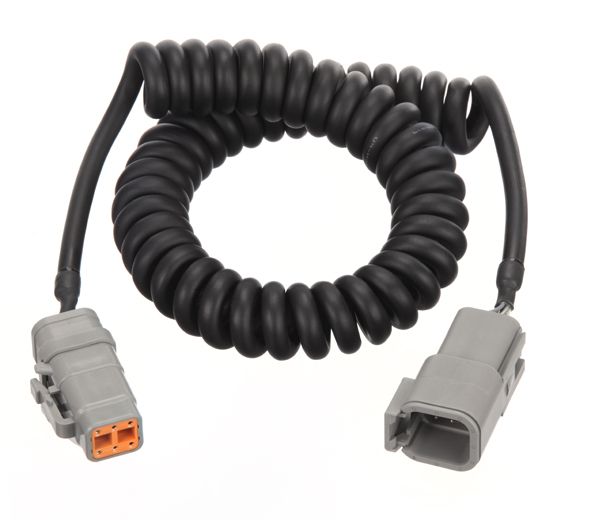

61222 – CURLY CORD LOOM TERMINATED The terminated curly cord allows the buttons included with the kit to be easily moved onto the steering wheel. The loom is pre-terminated with a 6 pin DTM, and has 6 straight through wires, allowing for additional buttons if required.

Supplied products may differ slightly to the images shown.

The C127 Race Display Kit includes a professional level, terminated loom that is pre-configured to get the most out of your Dash Logger. This loom plugs into the back of the C127, and has labelled wires for each of the devices that come with the kit. Follow these guidelines to connect the loom:
