This 8 Channel CDI has been specifically designed for use with MoTeC M1 ECU's.
CDI-8
CDI-8
CDI-8
Part No: #41015
- Optimal Operating Voltage: 13 -18 V DC negative ground
- Startup Voltage: +6 V
- Max. Supply Current: 7.0 A
- Power Off Current: < 700 uA
- Max Ignition Frequency: 1,200 Hz
- Maximum Energy Limit: 750 Hz
- Coil Primary Voltage: 480 V
- Spark Energy: 115 mJ @ 750 Hz
- Trigger: 10 mA falling edge
- Ignition Delay: 25 uS
- Tacho: 12 V, 100 mA square wave

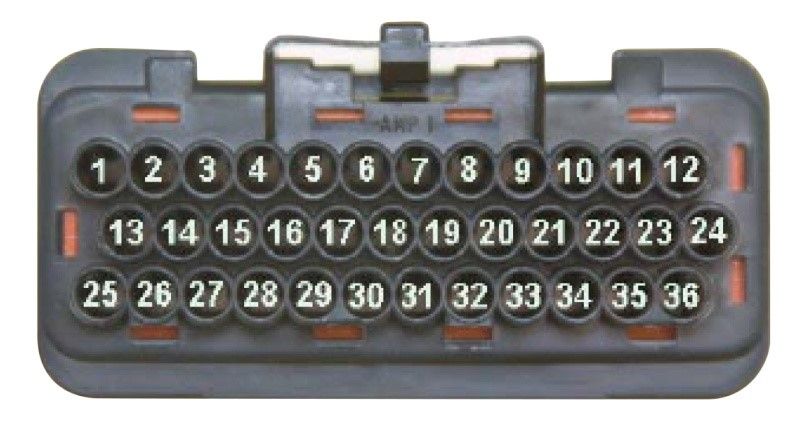

View of plug from wire entry side
| Pin | Description | Pin | Description |
|---|---|---|---|
| 1 | Ignition 3 | 19 | Not used |
| 2 | Ignition Switch | 20 | Not used |
| 3 | Ignition 8 | 21 | Coil 7 and 8 - |
| 4 | Ignition 7 | 22 | Coil 5 and 6 - |
| 5 | Ignition 4 | 23 | Coil 3 and 4 - |
| 6 | Not used | 24 | Coil 1 and 2 - |
| 7 | Not used | 25 | +12 V (Battery) |
| 8 | Not used | 26 | +12 V (Battery) |
| 9 | Coil 8 + | 27 | Ignition 1 |
| 10 | Coil 6 + | 28 | Ignition 6 |
| 11 | Coil 4 + | 29 | Not used |
| 12 | Coil 2 + | 30 | Tacho |
| 13 | Ground (Battery) | 31 | Not used |
| 14 | Ground (Battery) | 32 | Not used |
| 15 | Ignition 5 | 33 | Coil 7 + |
| 16 | Ignition 2 | 34 | Coil 5 + |
| 17 | Not used | 35 | Coil 3 + |
| 18 | Not used | 36 | Coil 1 + |

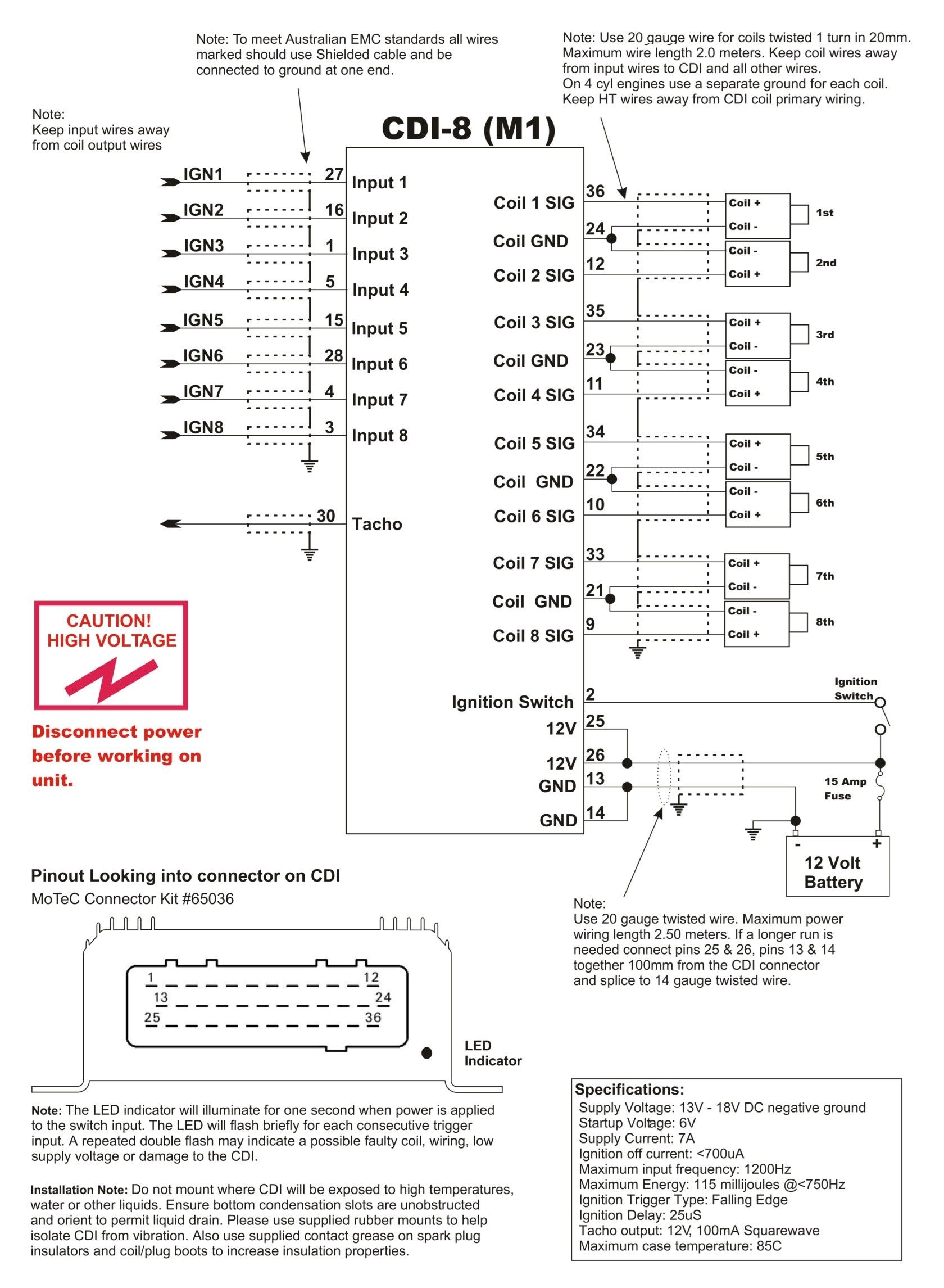

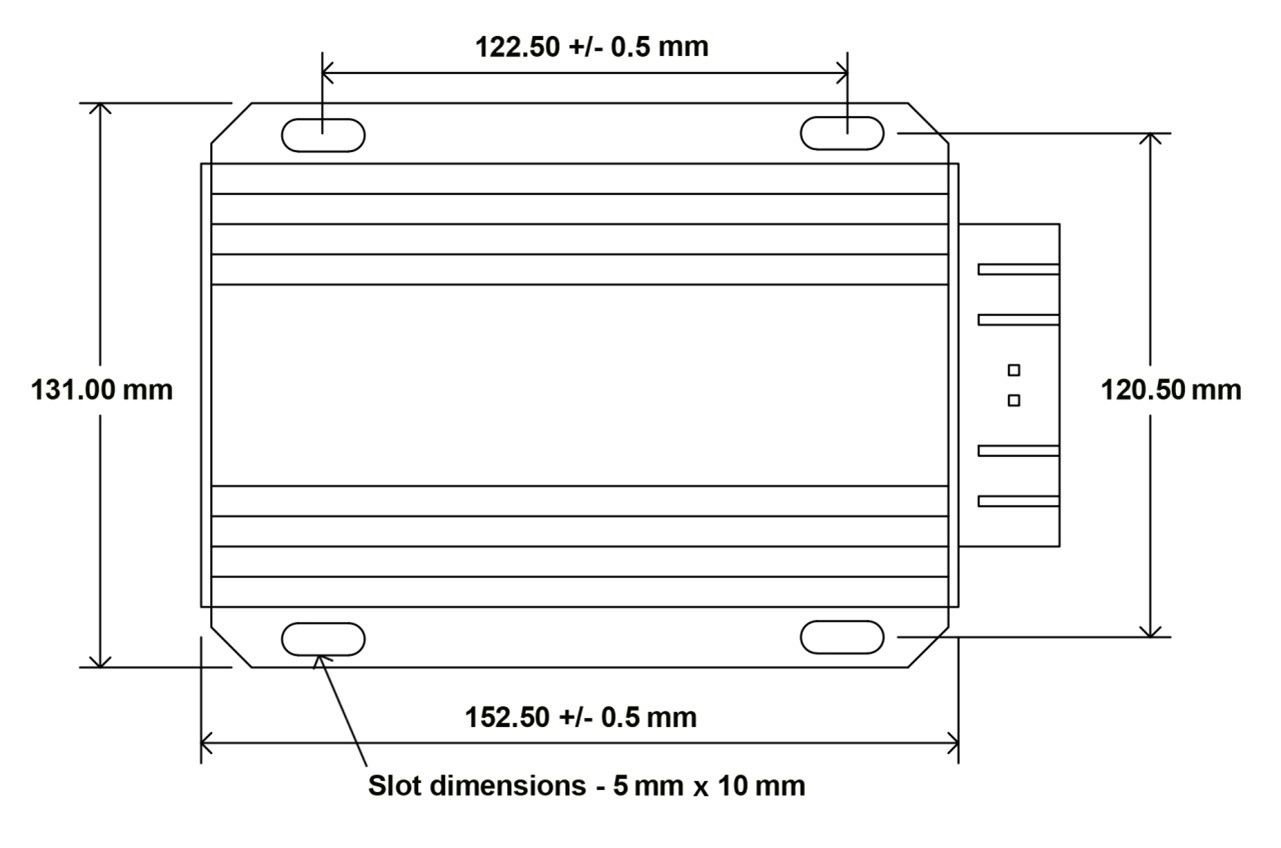

- Do not mount the unit where it will be exposed to water or other liquids.
- Ensure the bottom condensation slots are unobstructed and oriented to permit gravity drain.
- Select a location away from intense heat and, if required, provide a source of cooling air to remove internally generated heat.
If you are interested in purchasing this product contact an Authorised MoTeC Dealer.
