D-Drive White Throttle Position Sensor
D-Drive White Throttle Position Sensor
D-Drive White Throttle Position Sensor
Part No: #56002

OVERVIEW

D - Drive Throttle Position Sensor LH direction

SPECIFICATIONS

  • 0 to 5 V output
  • Sensor signal output Analogue Voltage (AV)
  • Mounting
    • Maximum axial throttle shaft moment allowed .3 mm
    • For sensor accuracy ensure tight control of mounting concentricity with the throttle body and throttle shaft

COMPATIBILITY

  • All MoTeC ECUs
  • All MoTeC Dash/Enclosed loggers

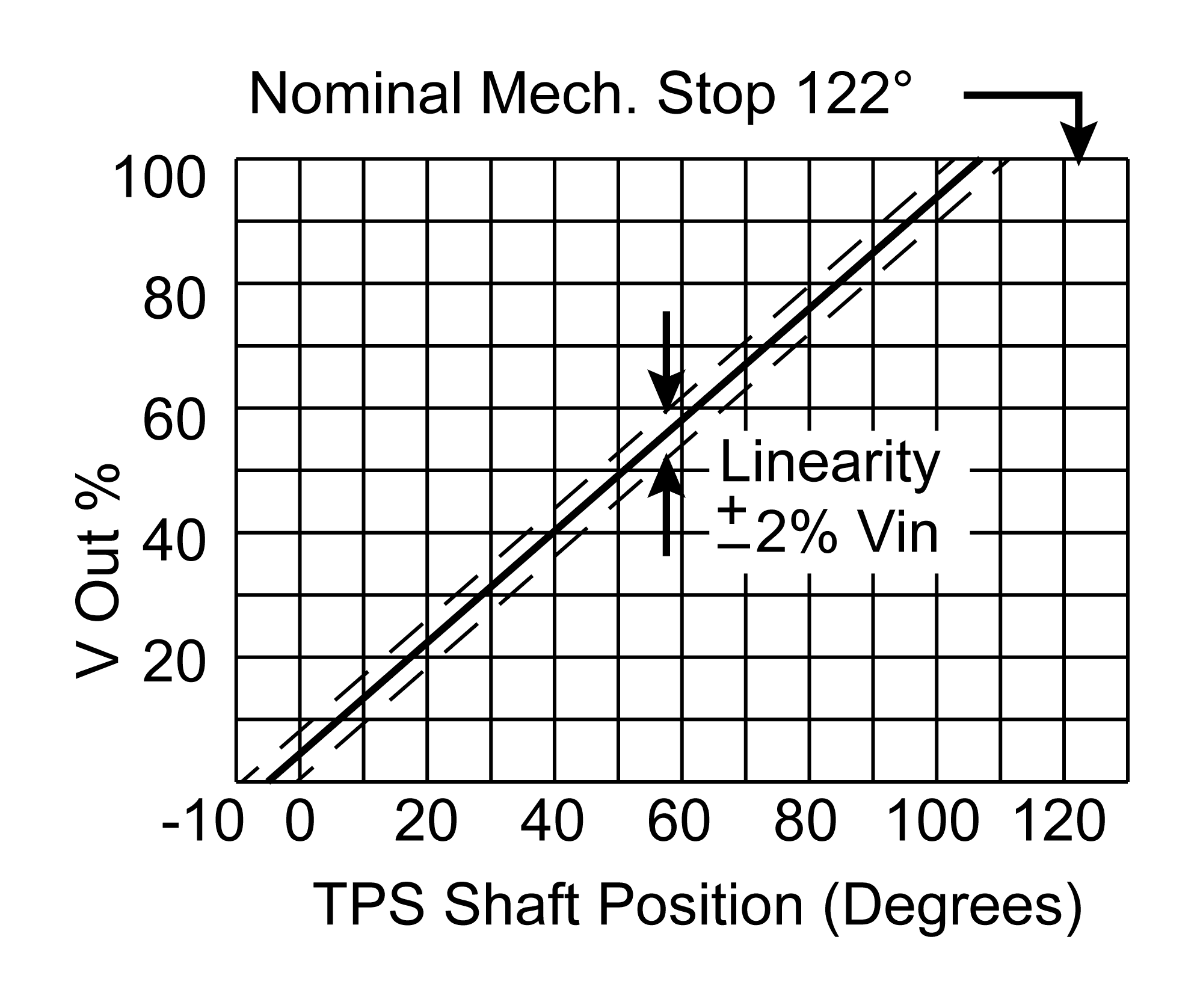

CALIBRATION

WIRING

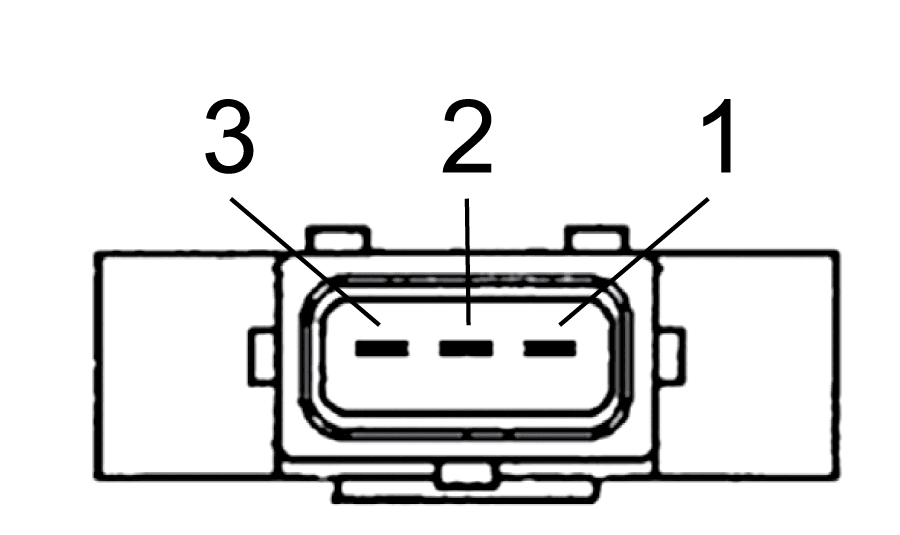

3 Pin Connector

Mating connector # 65012

Pin Name
1 5 V
2 Signal output
3 0V

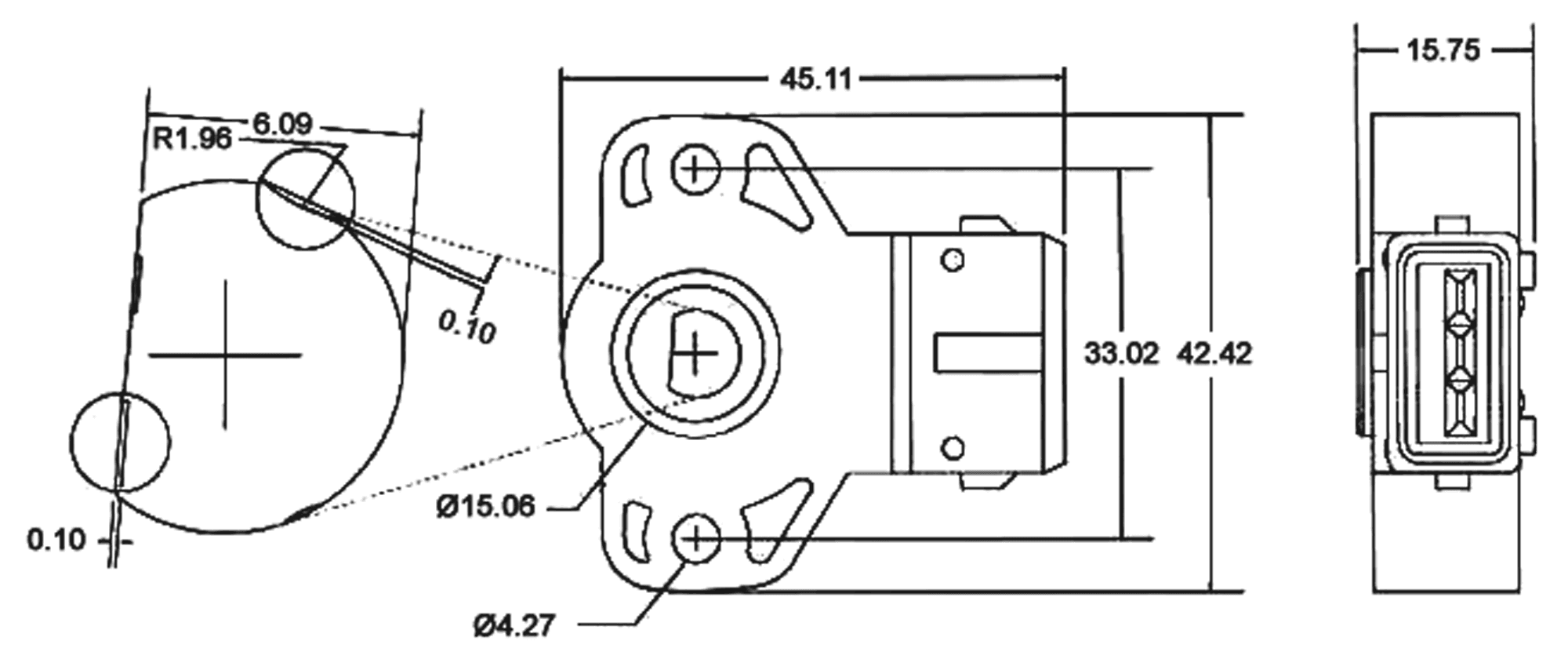

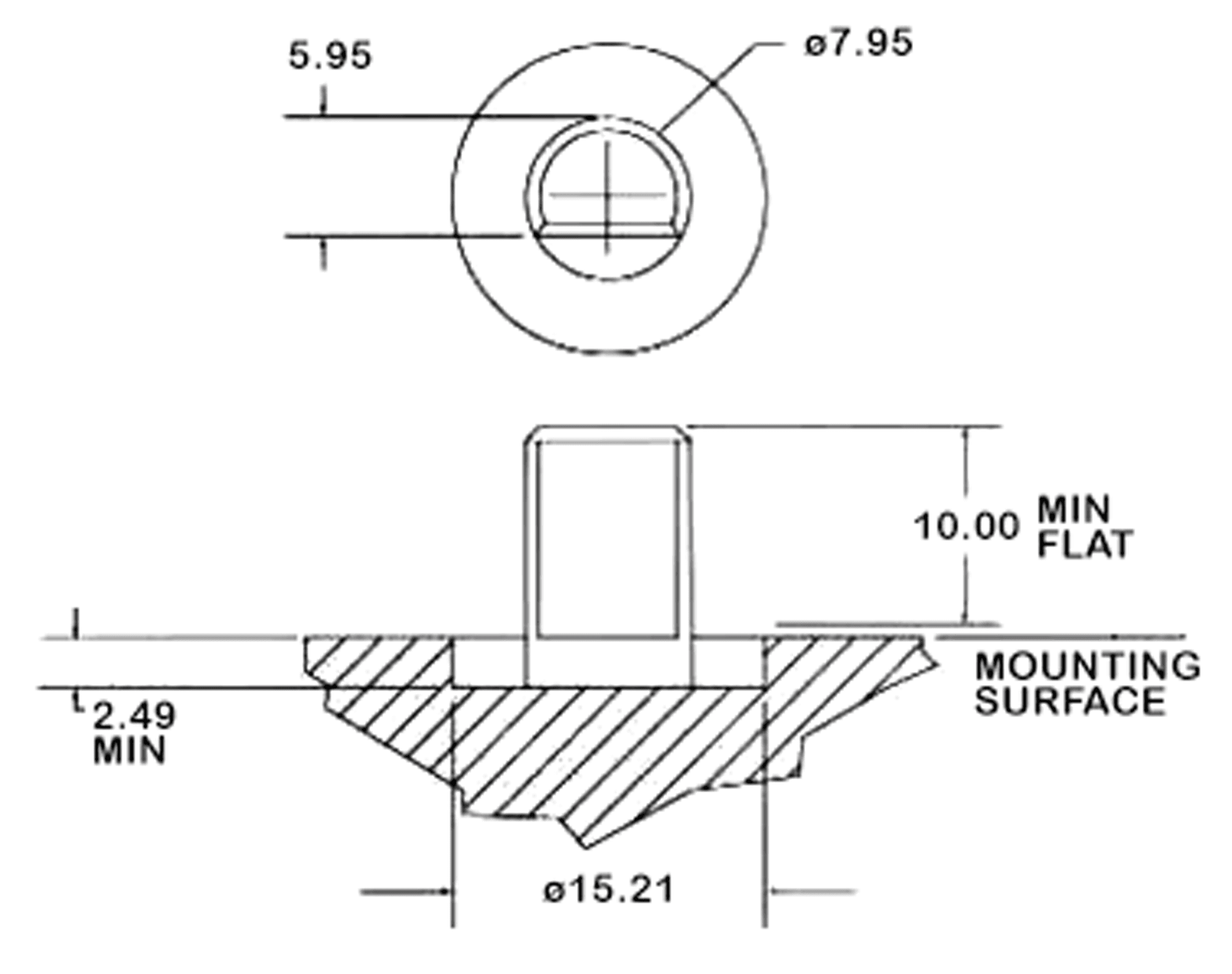

DIMENSIONS

Measurements in mm

PURCHASING

If you are interested in purchasing this product contact an Authorised MoTeC Dealer.

DOWNLOADS

Position Sensors
Name
Version / Part
Published
Download
Name, Version / Part, Published
Name
Version / Part
Published
Download
Throttle Position Sensors X05 - Wiring Diagram
56001, 56002, 56004, 56005, 56006, 56007
Jul 2004
Download
Throttle Position Sensors X05 - Wiring Diagram
56001, 56002, 56004, 56005, 56006, 56007
Jul 2004
Throttle Position Sensors X05 - Wiring Diagram
56001, 56002, 56004, 56005, 56006, 56007
Jul 2004
Download
Useful Links

This page shows the relevant downloads for this product. For a full selection of MoTeCs downloads visit the Downloads page.



To keep up-to-date with the latest webinars or software you can subscribe to our mailing lists and we will send you a message when new items are released.

To sign-up for a mailing list click the "SIGN-UP: WEBINAR NEWS" or "SIGN-UP: SOFTWARE RELEASE" button below.

OVERVIEW

SPECIFICATIONS

COMPATIBILITY

CALIBRATION

WIRING

DIMENSIONS

PURCHASING

DOWNLOADS
