Flange Mount Hall Sensor
Flange Mount Hall Sensor
Flange Mount Hall Sensor
Part No: #59110

OVERVIEW

This Hall Effect device is designed for use in applications where ferrous edge detection/near zero speed sensing is needed. The single Hall design is immune to alignment issues allowing unlimited mounting positions.

Applications:

  • Engine speed
  • Transmission speed
  • Wheel speed

FEATURES

  • Capable of operating up to 150 °C
  • Sealed IP67 standard
  • Resistant to fuels, solvents, and lubricants associated with engines, transmissions, brakes and chassis systems

SPECIFICATIONS

  • Operating voltage range 5 – 30 VDC
  • Supply current 6 mA max
  • Output saturation voltage 600 mV max
  • Output current 25 mA max
  • Operating temperature range -40 to 150 °C

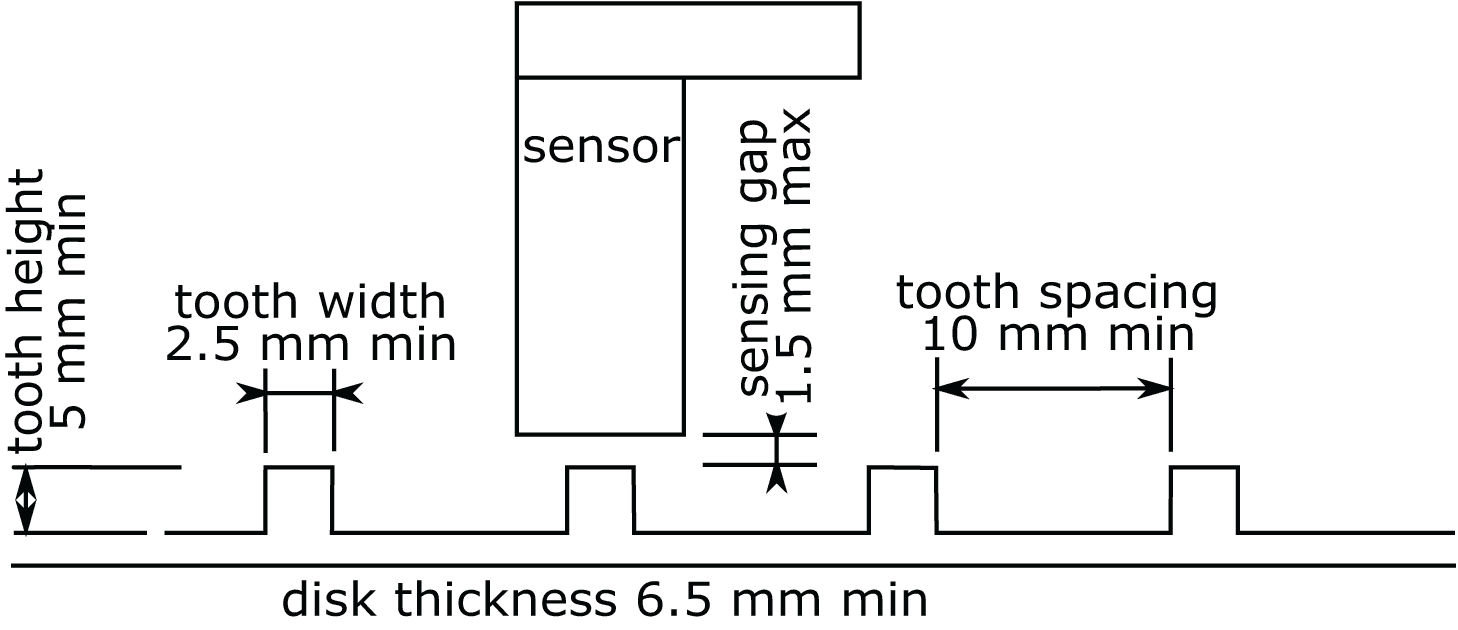

Disk Specification

  • Use magnetically soft material e.g. mild steel

COMPATIBILITY

  • All MoTeC ECUs
  • All MoTeC Dash/Enclosed loggers

WIRING

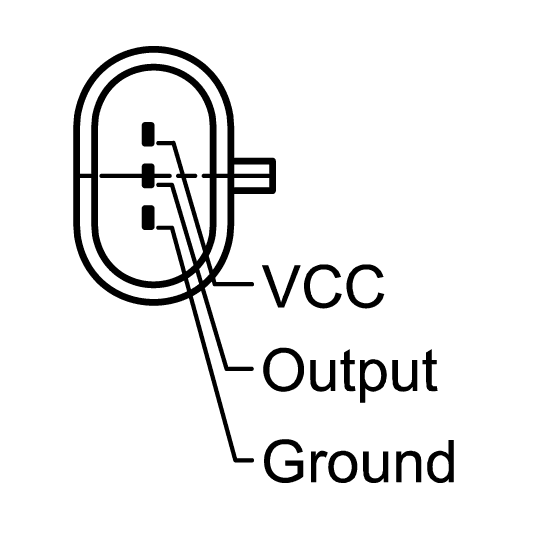

3 Pin Connector

Mating connector # 68100

Pin Name
A VCC 5 - 6.3 V
B Output
C Ground

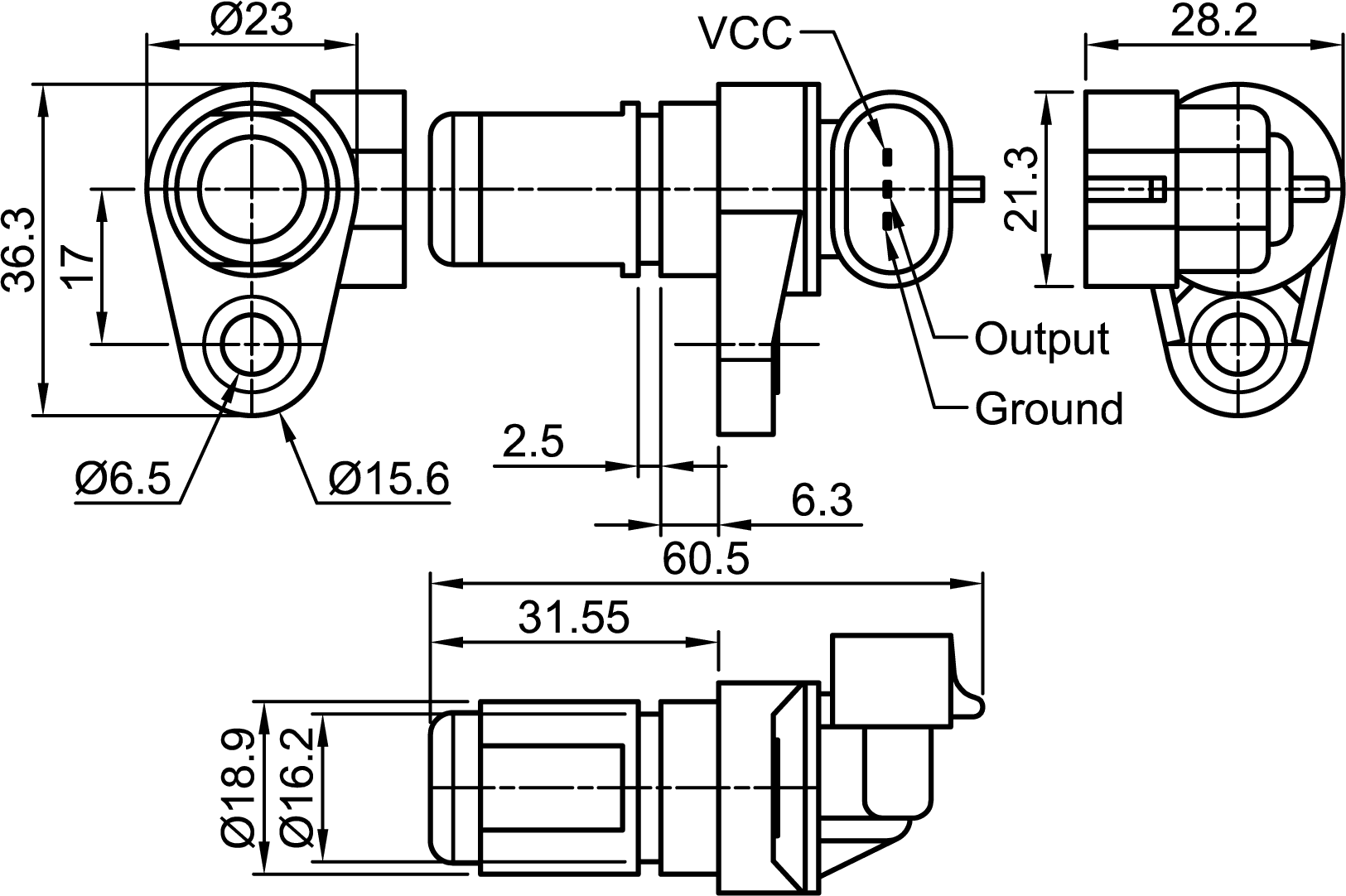

DIMENSIONS

Measurements in mm

PURCHASING

If you are interested in purchasing this product contact an Authorised MoTeC Dealer.

DOWNLOADS

Useful Links

This page shows the relevant downloads for this product. For a full selection of MoTeCs downloads visit the Downloads page.



To keep up-to-date with the latest webinars or software you can subscribe to our mailing lists and we will send you a message when new items are released.

To sign-up for a mailing list click the "SIGN-UP: WEBINAR NEWS" or "SIGN-UP: SOFTWARE RELEASE" button below.
