Gear Box Control Paddle Shift Auxiliary Kit 2
Gear Box Control Paddle Shift Auxiliary Kit 2
Gear Box Control Paddle Shift Auxiliary Kit 2
Part No: #75120

OVERVIEW

The Paddle Shift Auxiliary Kit is designed as a hardware solution for integrating paddle shift with a sequential racing gearbox.

It is intended for use with a MoTeC GPRP-M1 engine management system, which comprises an M1 ECU and the GPRP firmware Package featuring paddle shift control.

FEATURES

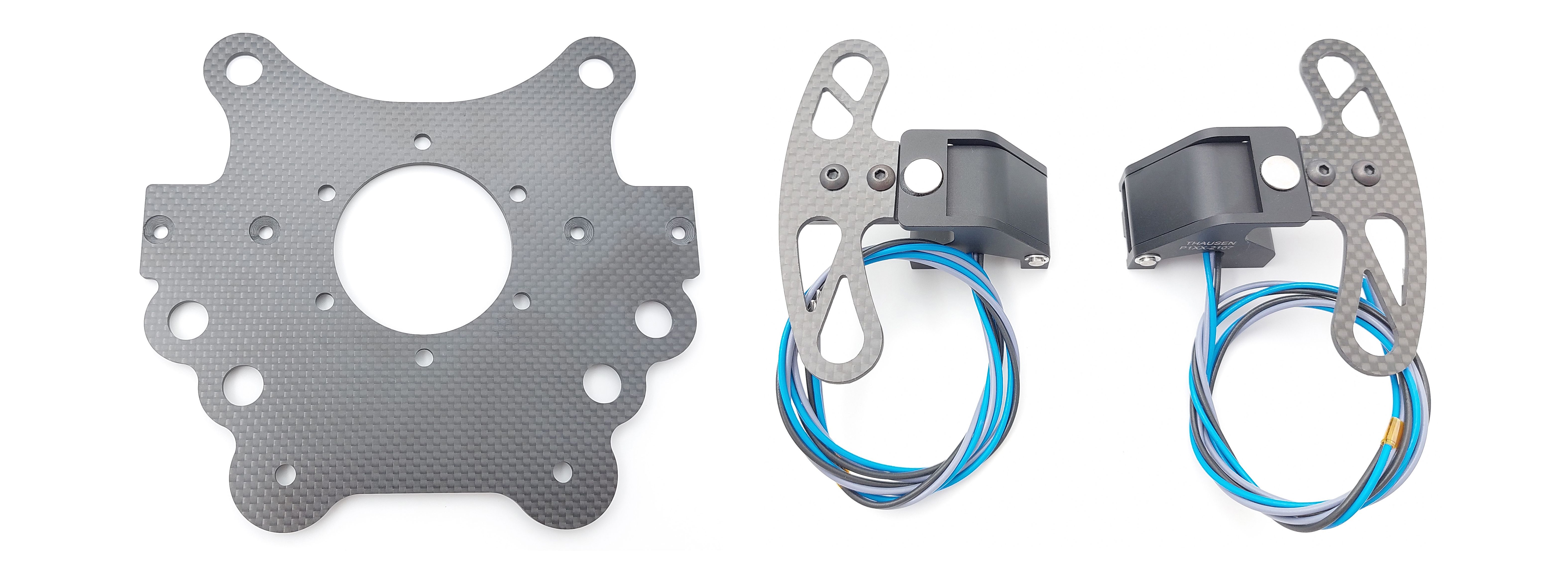

  • Includes two carbon fibre steering wheel mounted paddles (momentary switches) for up/down shifts to the ECU.
  • Includes carbon fibre steering wheel mounting plate for paddles and buttons.
  • The push/pull pneumatic actuator will allow both up and down shifts through two in-built solenoid valves. Valve timing is controlled through the ECU paddle shift function.
  • The pneumatic pump supplies air pressure to the tank and is activated by the ECU with specific control of pressure including a pressure sensor fault fall back strategy.
    • If the sensor fails or is not present, the ECU can automatically cycle the pump to maintain a pressure supply. Excess air pressure is relieved through the pressure relief valve supplied in the kit.
  • The air tank and manifold supply a strong reserve of pressurised air for shifts. The manifold includes ports for all necessary fittings and a pressure sensor for the pump control.
  • The tank to pump pressure line comes as a standard 1.5m length but can be shortened using simple tools. It is included with the air tank manifold kit but is also available as a spare part.

KIT CONTENTS

75101 – GEAR BOX CONTROLLER SHIFT ACTUATOR

31100 – GEAR BOX CONTROLLER COMPRESSOR PUMP

75121 – GEAR BOX CONTROLLER PADDLES KIT

61222 – CURLY CORD LOOM TERMINATED

58042 – HONEYWELL 250 PSI PRESSURE SENSOR

75104 – GEAR BOX CTRL AIR TANK MANIFOLD KIT

Also available as a replacement part or spare:

75111 – GEAR BOX CONTROLLER AIR TANK HOSE

WIRING

  • Paddles can be wired to any digital, universal digital or analogue voltage input pin.
    • Option for single input wiring see: Paddle wiring
  • The pneumatic actuator can be wired directly to the ECU without the need for an external amplifier or relay. Two half-bridge, peak hold injector outputs or low side outputs can be used; one output for up shifts and one output for down shifts.
  • The pneumatic pump is controlled by the M1. It can be powered either from a MoTeC PDM using CAN or a directly wired high current relay using a Half Bridge, Peak Hold Injector or Low Side output.
  • The tank pressure sensor can be wired to any analogue voltage input.

See also: Paddle wiring

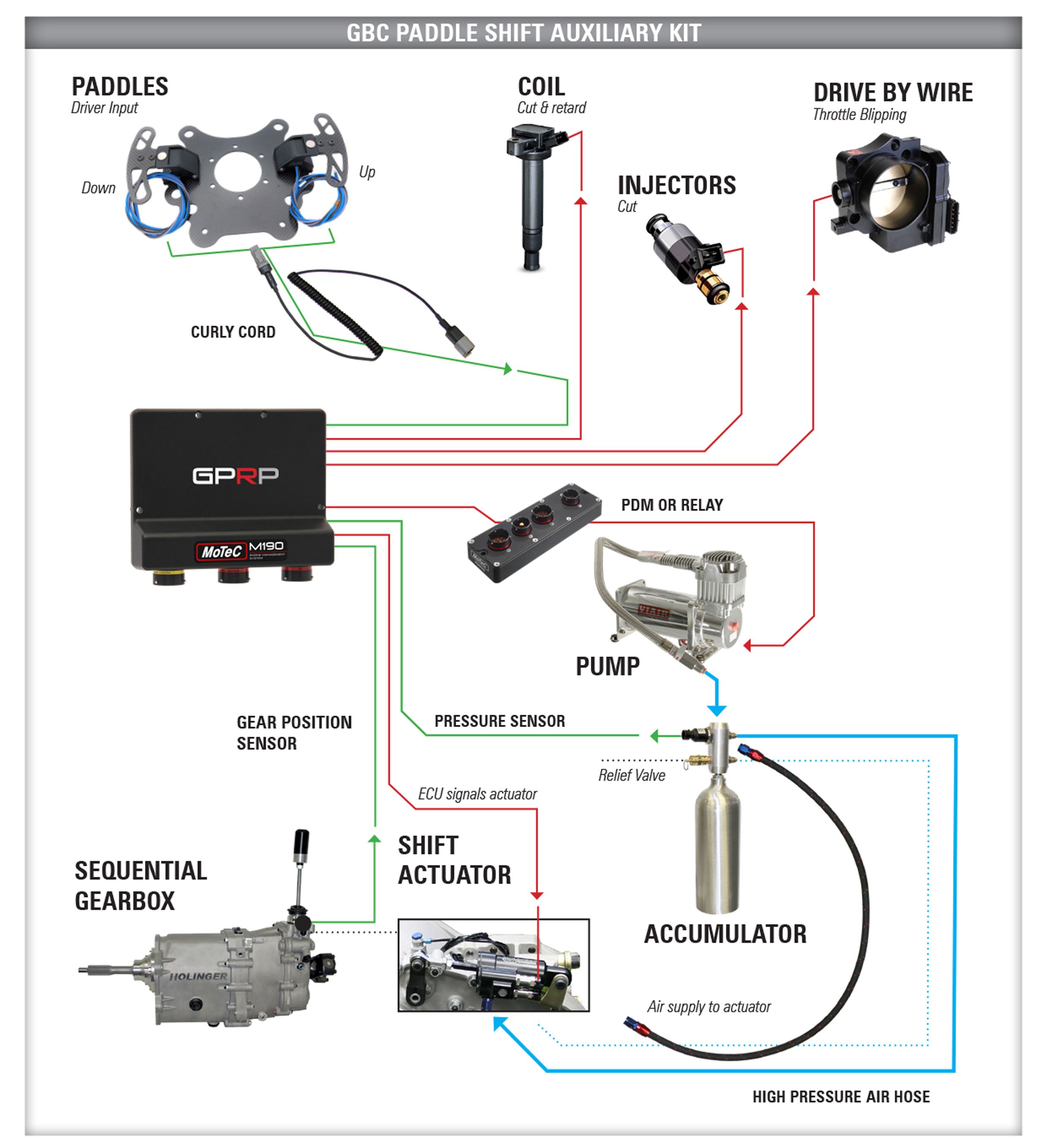

THE PADDLE SHIFT SYSTEM

Paddle Shift Sequence:

  1. The request to begin a shift comes from the driver paddle.
  2. The system cuts or blips the engine via the injectors, coils or Drive by Wire.
  3. The Shift Actuator moves the gearbox between the gears.
  4. When the next gear is reached, power is reintroduced.

PADDLE MOUNTING

It is recommended that the paddles are mounted to the supplied plate attached to the rear of the steering wheel using two countersunk M4x0.7 screws per paddle with a retaining compound (e.g. Loctite 222). The mounting screws are to be no more than 4mm longer than the thickness of the mounting plate. Typically, 6mm long screws would be used with the supplied 2.5mm thick mounting plate.

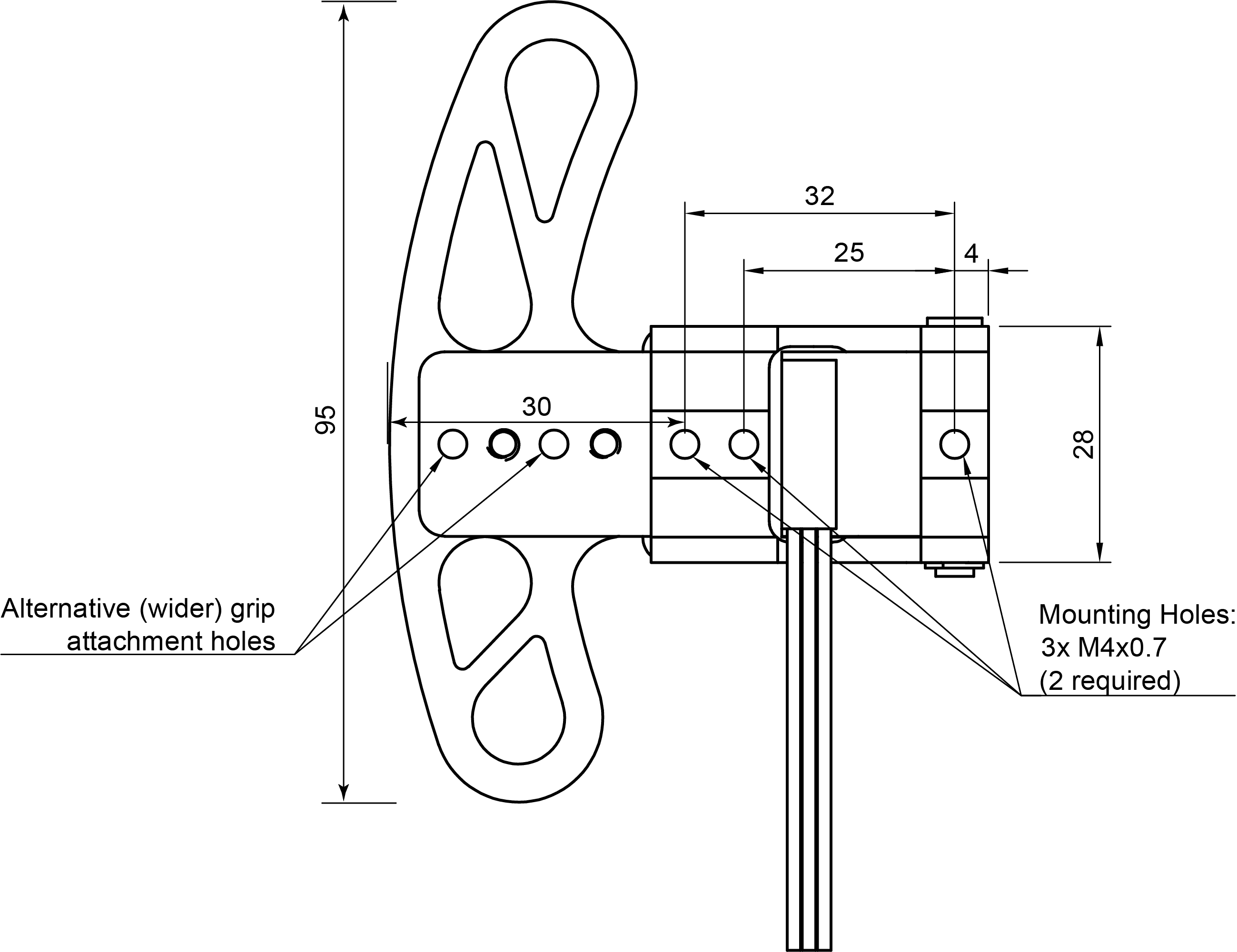

Mounting hole dimensions are shown below. Also shown are the alternative grip attachment holes which shift the paddle grip outwards by 6mm per side.

Dimensions in mm

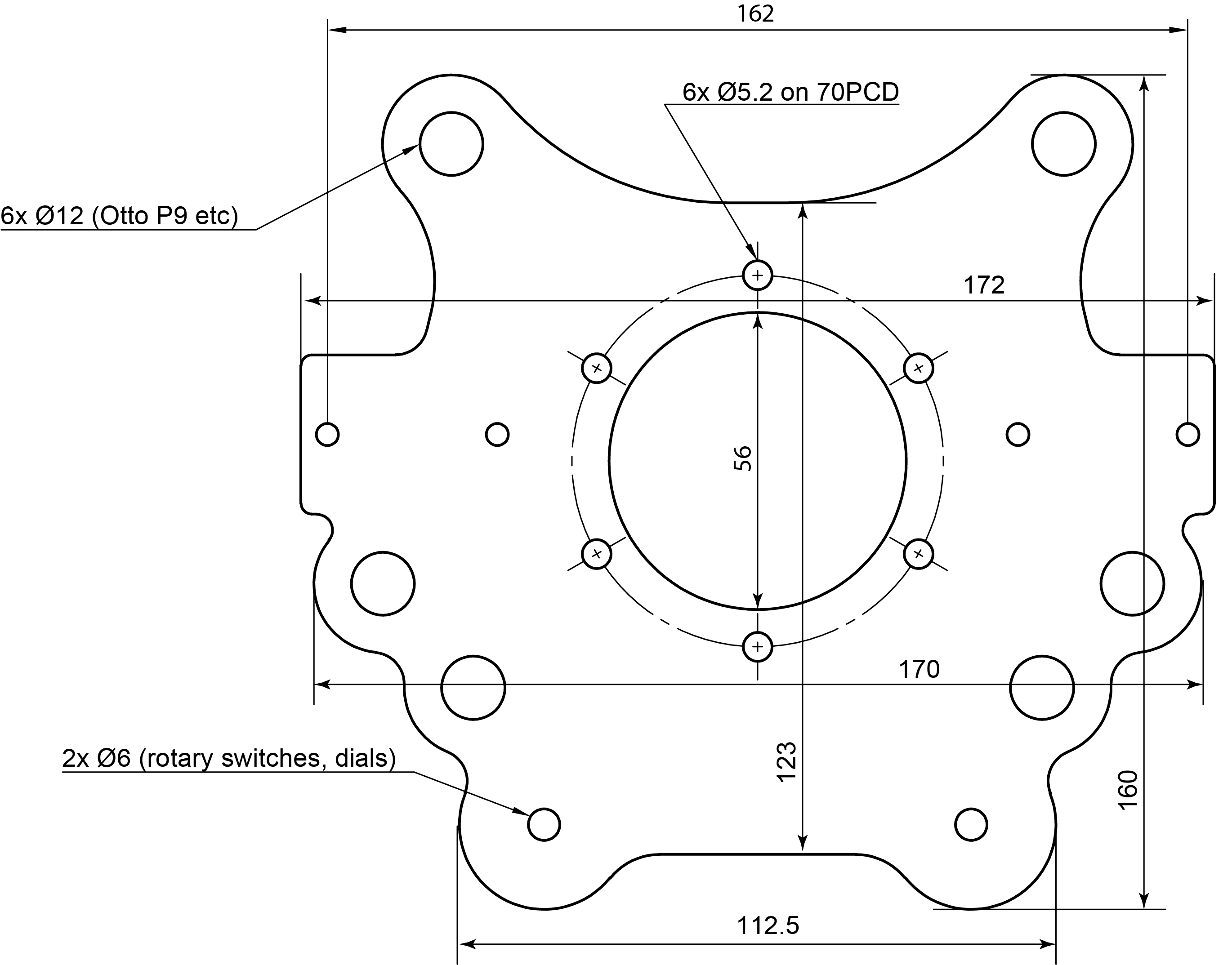

Mounting Plate

Dimensions in mm

PADDLE WIRING

The paddles come supplied with unterminated 500mm 18AWG flying leads for freedom of configuration. The circuit descriptions are as follows:

Colour Use
Blue Normally Open contact
Grey Normally Closed contact
Black Common

Typically the blue wires will be connected to a digital or switch input of a controller (e.g. Engine Management System), and black wires will be connected to 0V/ground; there will be no connection to the grey wire.

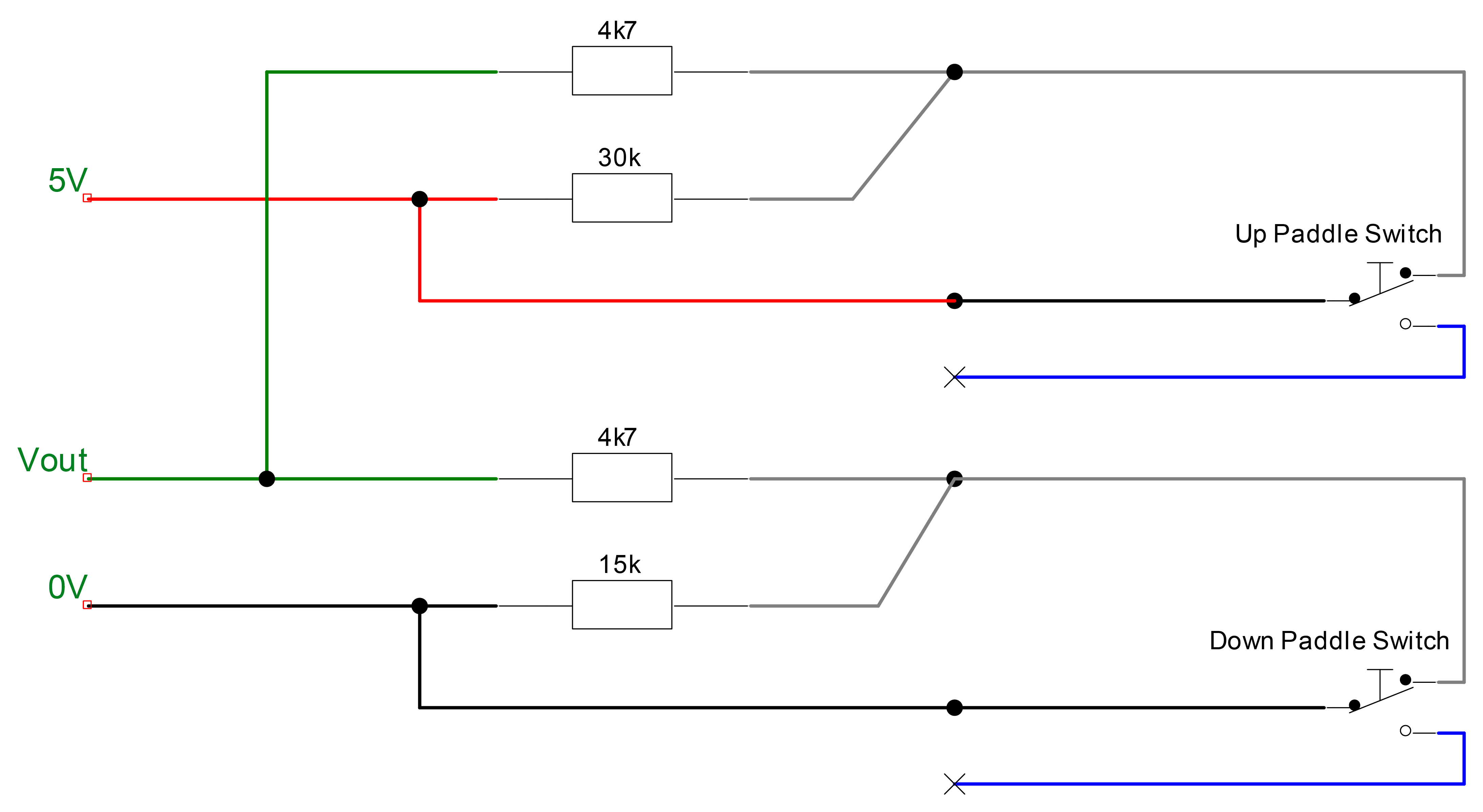

Alternative Connection - Single ECU Input

This method enables connection of both paddles to a single input when this is supported by the controller.

The resulting Vout behaviour is as follows:

Action Vout
Off 2.500
Up 0.596
Down 4.037
Both 1.811

PURCHASING

If you are interested in purchasing this product contact an Authorised MoTeC Dealer.
