HKZ101 Hall Switch
HKZ101 Hall Switch
HKZ101 Hall Switch
Part No: #51121

OVERVIEW

This Hall effect vane switch is a contactless switch consisting of a monolithic integrated Hall effect circuit and a special magnetic circuit hermetically sealed in a plastic package. The switch is actuated by a soft-iron vane which is passed through the air gap between magnet and Hall sensor.

SPECIFICATIONS

  • Operating voltage range 4.5 – 24 VDC
  • Fall time = 1 μS
  • Operating temperature range -40 to 130 °C

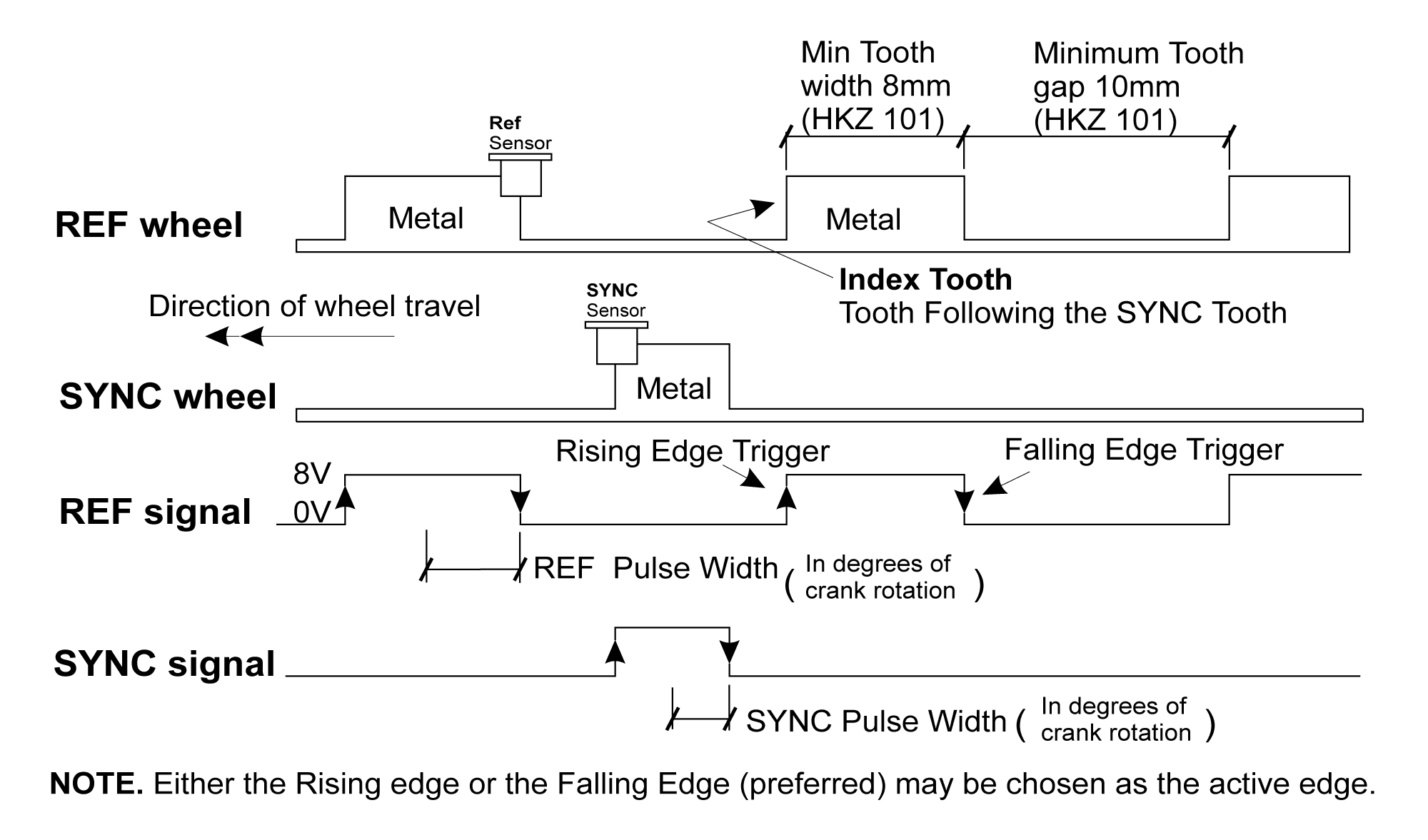

Disk Specification

  • Use magnetically soft material e.g. mild steel

COMPATIBILITY

  • All MoTeC ECUs
  • All MoTeC Dash/Enclosed loggers

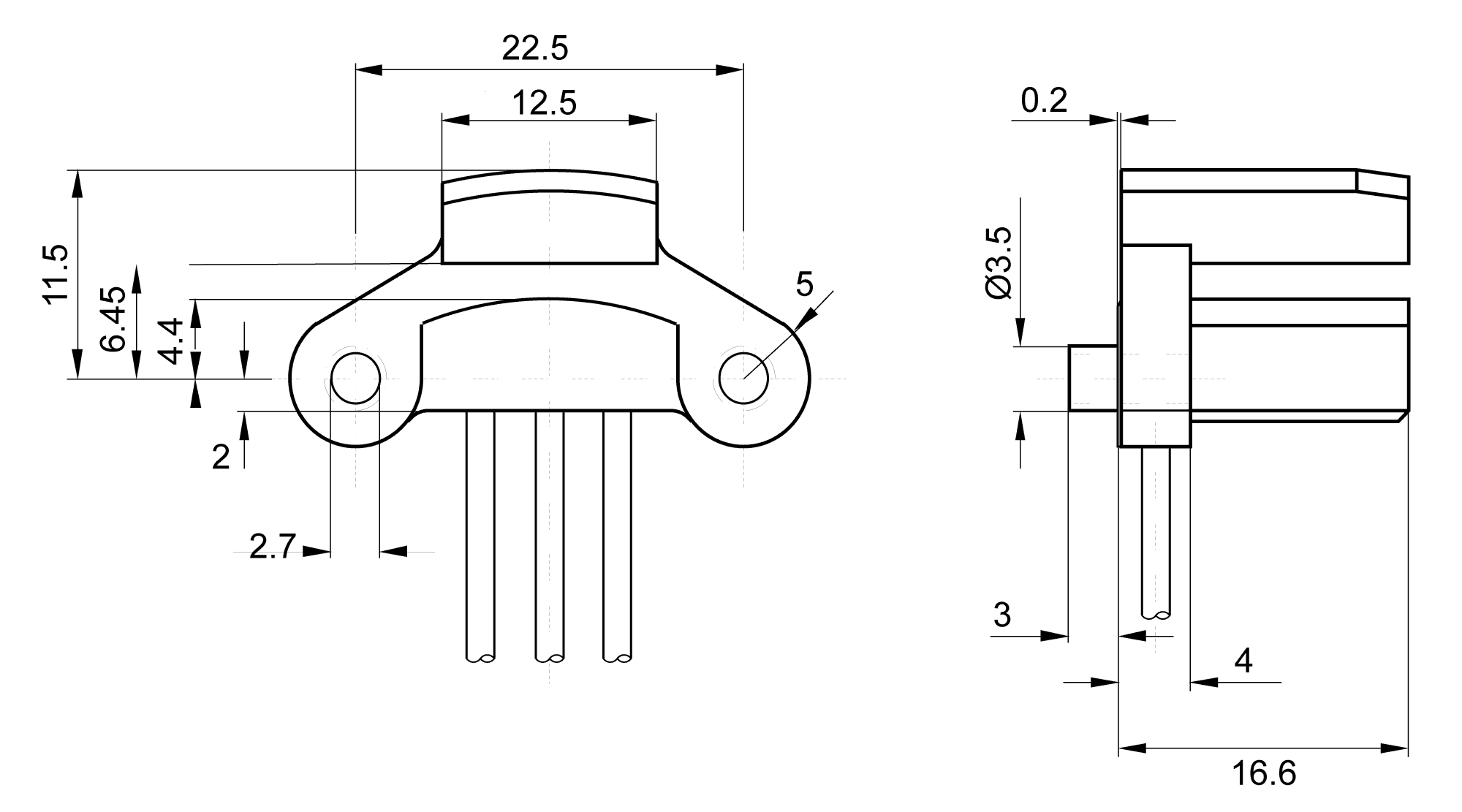

DIMENSIONS

Measurements in mm

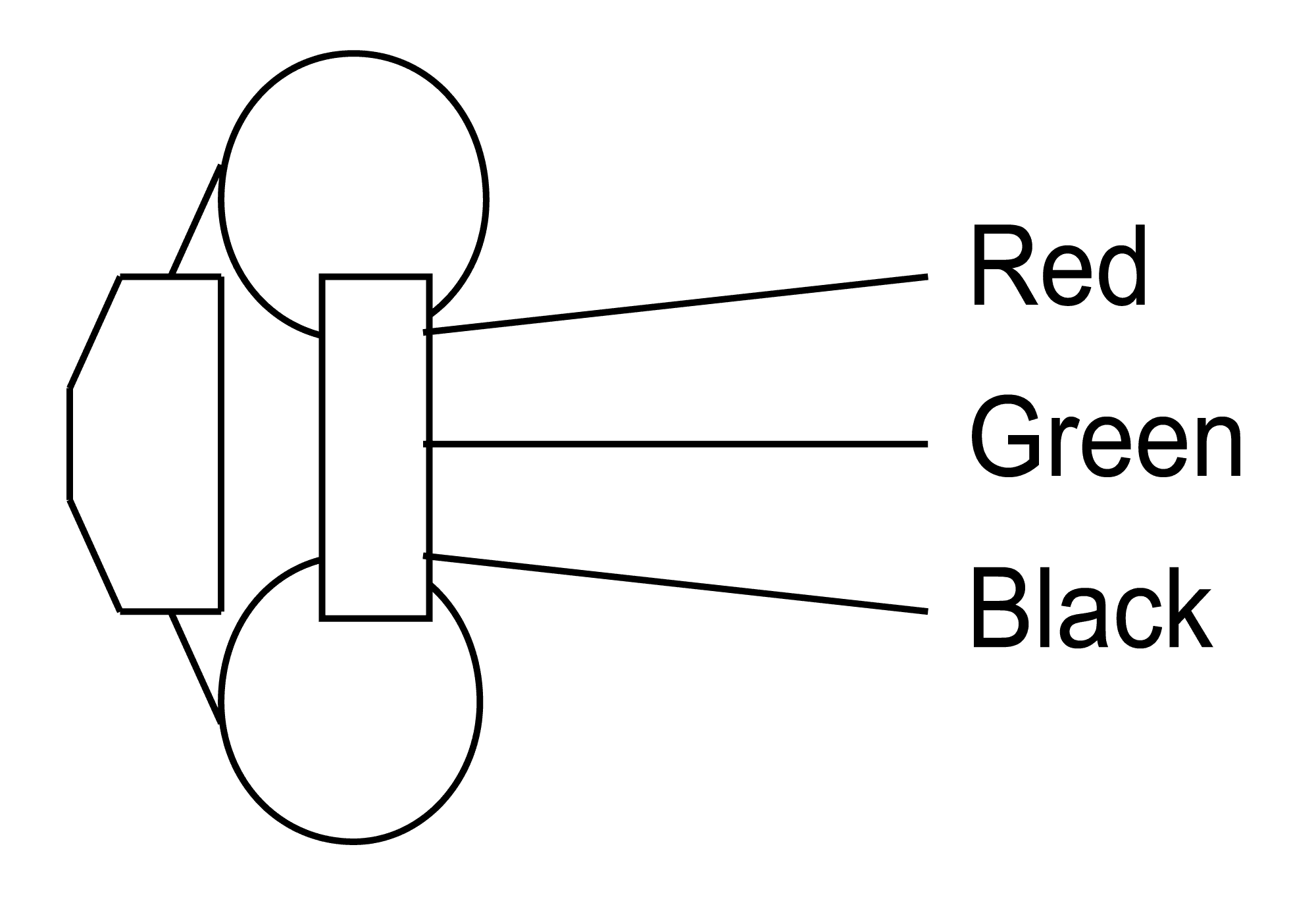

PINOUT

Unterminated flying lead

Wire colour Name
Red 5 - 6.3 V
Black Output
Green Signal

PURCHASING

If you are interested in purchasing this product contact an Authorised MoTeC Dealer.

DOWNLOADS

Useful Links

This page shows the relevant downloads for this product. For a full selection of MoTeCs downloads visit the Downloads page.



To keep up-to-date with the latest webinars or software you can subscribe to our mailing lists and we will send you a message when new items are released.

To sign-up for a mailing list click the "SIGN-UP: WEBINAR NEWS" or "SIGN-UP: SOFTWARE RELEASE" button below.
