This magnetic Hall effect sensor is suitable for measuring wheel speed or engine speed/sync.

This sensor needs to be triggered by the south pole of a magnet, a ferrous tooth will not trigger this sensor.

• Input voltage 4.5 - 24 V
• Speed range 0 - 15 kHz
• Operating temperature range -20 to 140 °C
• Required air gap .75 - 1.5 mm
• Installation torque 11 to 15 ft-lb
• 7/16" x 20 thread
• Output voltage 400 mV to Input voltage

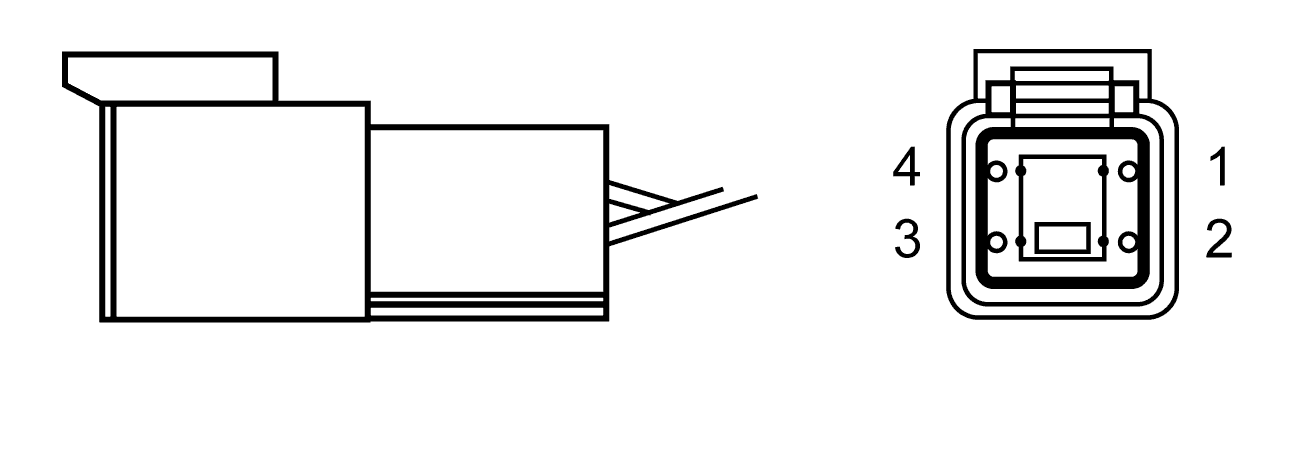

4 Pin Connector

Mating connector # 68055

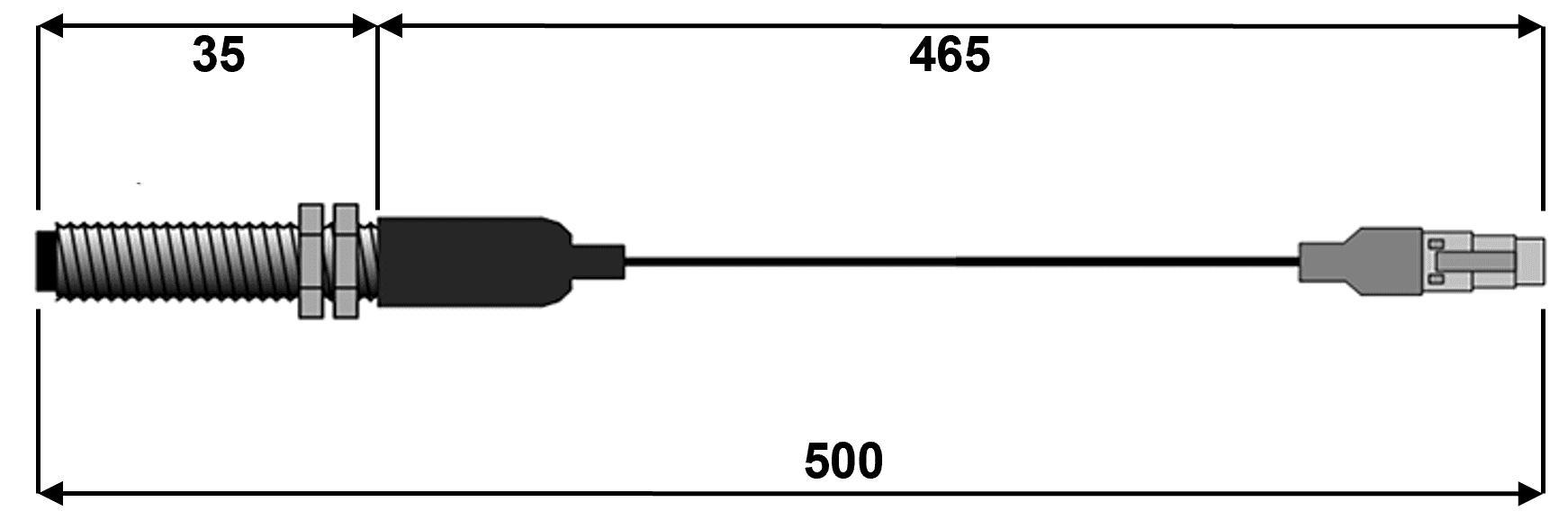

Dimensions in mm

If you are interested in purchasing this product contact an Authorised MoTeC Dealer.
