Honeywell Pressure Sensor - 5000 PSI
Honeywell Pressure Sensor - 5000 PSI
Honeywell Pressure Sensor - 5000 PSI

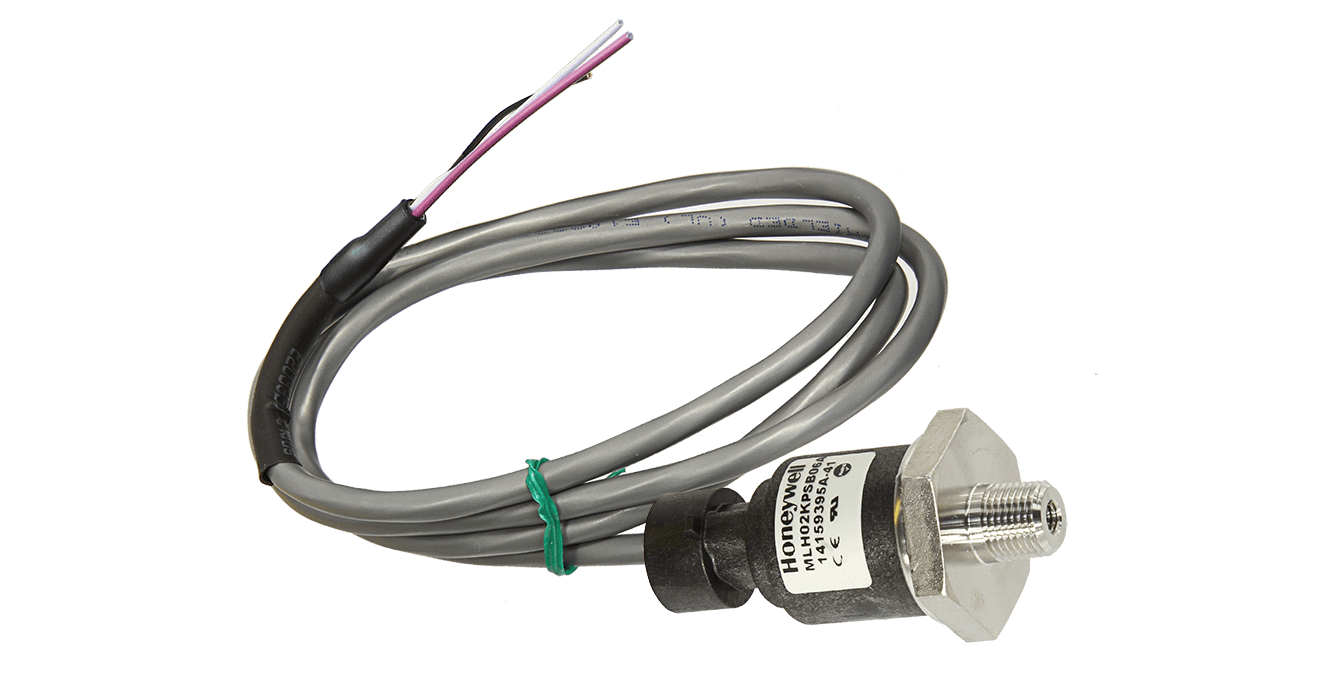

Image of Honeywell Pressure Sensor - 5000 PSI
Part No: #58044

OVERVIEW

The 5000 PSI (34473 KPa) Honeywell MLH pressure sensor is a 0 to 5000 PSI gauge pressure sensor suitable for use with fluids in applications such as fuel, oil or coolant pressure.

FEATURES

  • Operating temperature range of -40°C to 125°C
  • Less than 2 ms response time
  • IP65 Rated

SPECIFICATIONS

  • Operating range 0 to 5000 PSI (gauge pressure)
  • Sensor signal output Analogue Voltage (AV)
  • 0 to 5 V output (working range generally 0.5 V - 4.5 V)
  • 1/8 NPTF thread
  • 27 mm Hex

WIRING

Unterminated flying lead with 24 AWG wires

Wire colour Name
Red 5V
Black 0V
White Signal output

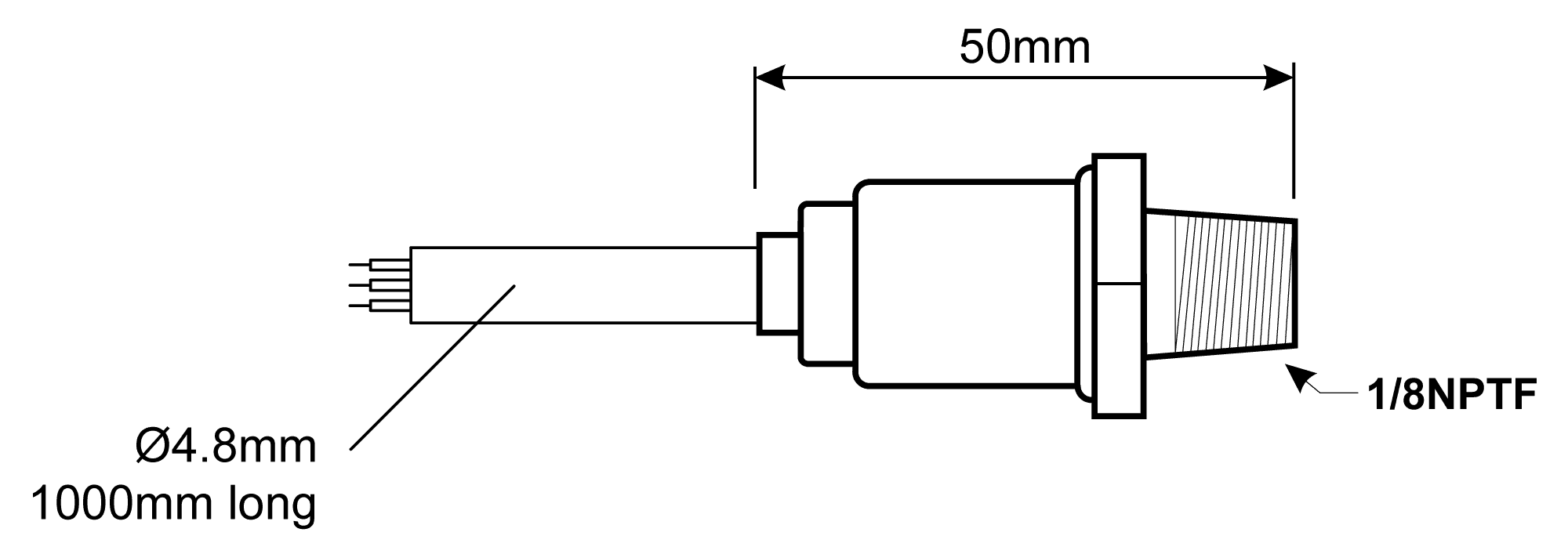

DIMENSIONS

Dimensions in mm

PURCHASING

If you are interested in purchasing this product contact an Authorised MoTeC Dealer.
