Knock Sensor (045)
Knock Sensor (045)
Knock Sensor (045)
Part No: #53120

OVERVIEW

The knock sensor is mounted directly on the crankcase and measures the structure-borne noise using a piezoelectric measuring element. When the knock sensor identifies the high-frequency engine vibration characteristic of engine knock a signal is transmitted to the ECU.

SPECIFICATIONS

  • Main frequency >20kHz
  • Operating temperature range -40 to 130°C
  • Max installation toque 20 ± 5 Nm

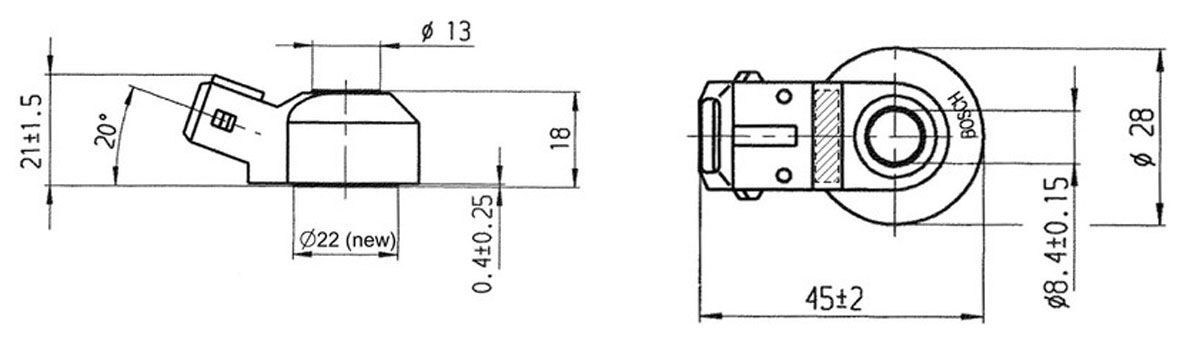

DIMENSIONS

Measurements in mm

WIRING

2 Pin Connector

Mating connector # 65008

Pin Name
1 SIG +
2 SIG -

PURCHASING

If you are interested in purchasing this product contact an Authorised MoTeC Dealer.
