Linear Potentiometer 75mm
Linear Potentiometer 75mm
Linear Potentiometer 75mm
Part No: #57154

OVERVIEW

These Linear Potentiometrs come in 6 stroke lenghts 75mm to 250mm. They are typically used to measure suspension movement e.g. Travel and ride height.

FEATURES

  • Sealed IP66 standard
  • 1 Meter long flying lead
  • Capable of operating up to 100 °C

ACCESSORIES

  • 57145 –
  • 57142 – LINEAR POT SHAFT 75mm FITS 57154

SPECIFICATIONS

  • Operating temperature range -30 to 100°C
  • Non-Linearity <+-0.15%
  • Shaft velocity <10 m/sec
  • Weight 79 grams

Sensors should only be used as voltage dividers Incorrect wiring may cause internal damage to the sensor

WIRING

Unterminated flying lead with 24 AWG wires

Wire colour Name
Red 5V
Black 0V
White Signal output

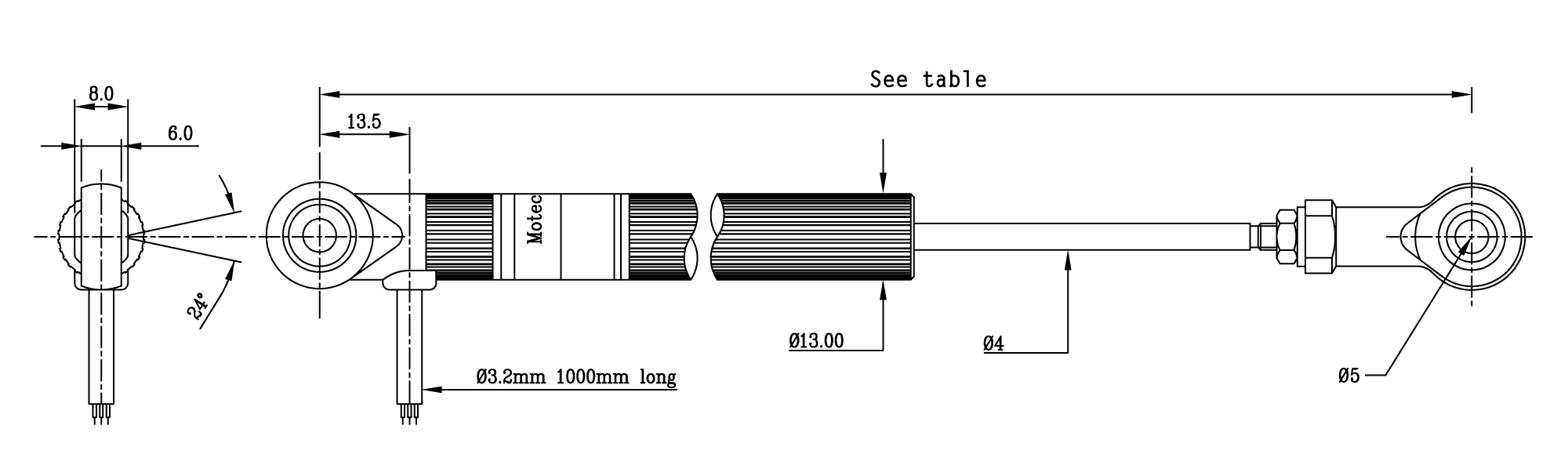

DIMENSIONS

Dimensions in mm

Travel Extended length Closed length Exposed shaft Spherical bearing ID
75 mm 298 mm 223 mm 50 mm 5 mm

PURCHASING

If you are interested in purchasing this product contact an Authorised MoTeC Dealer.
