Magnetic Sensor - Right angle Delco
Magnetic Sensor - Right angle Delco
Magnetic Sensor - Right angle Delco
Part No: #52001

OVERVIEW

This Magnetic sensor can be use for crankshaft and camshaft position or wheel speed

FEATURES

  • Resistant to fuels, solvents, and lubricants associated with engines, transmissions, brakes and chassis systems
  • O'ring seal included

SPECIFICATIONS

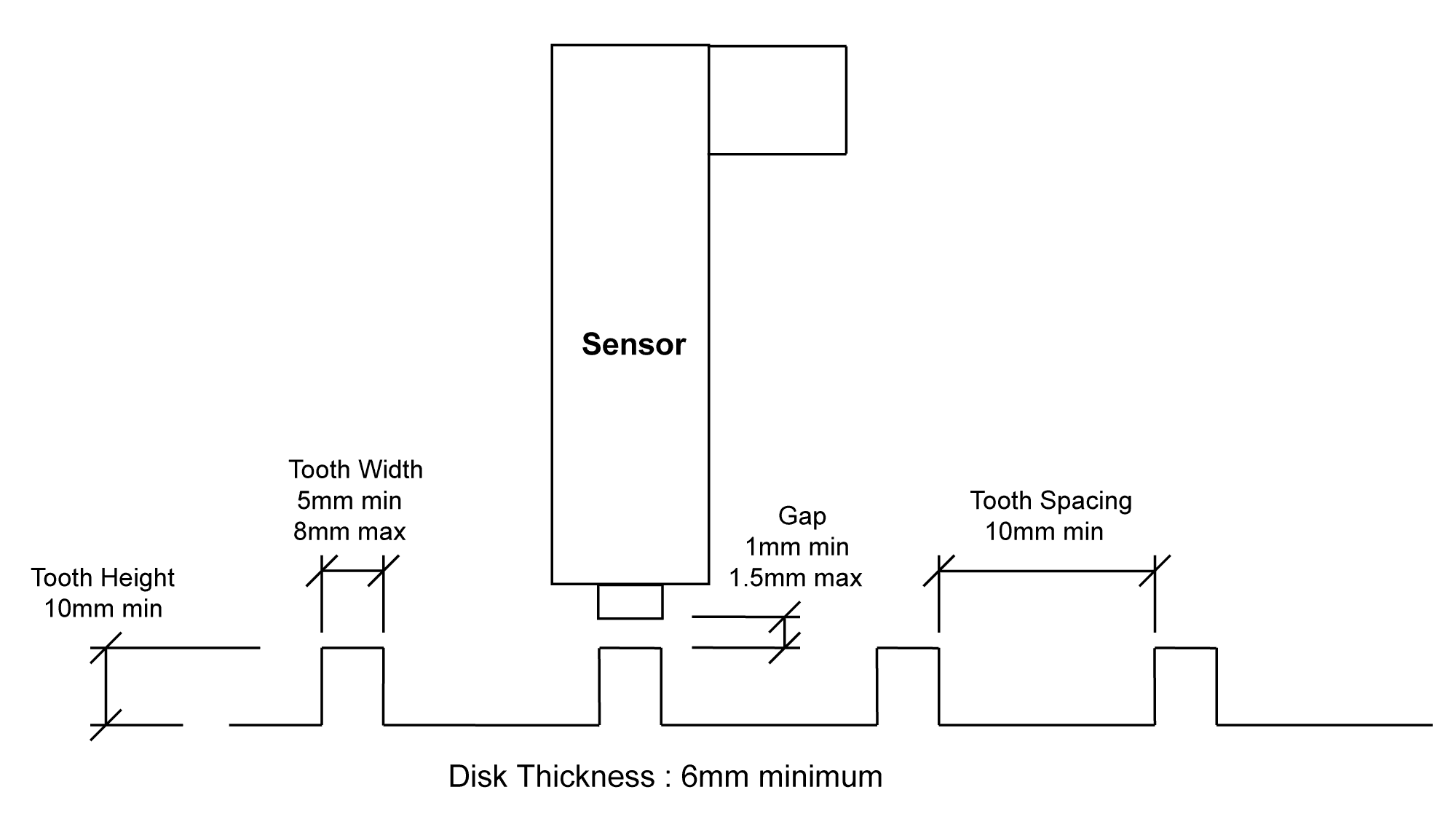

Disk Specification

  • Use magnetically soft material e.g. mild steel
  • Do not use stainless steel

COMPATIBILITY

  • All MoTeC ECUs
  • All MoTeC Dash/Enclosed loggers

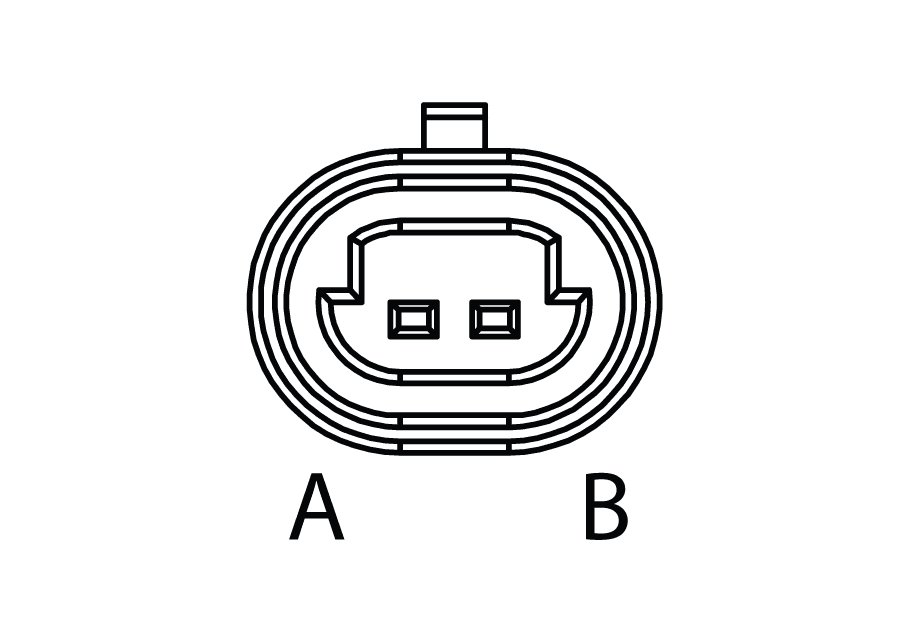

WIRING

2 Pin Connector

Mating connector # 64000

Pin Name
A 0V
B Signal output

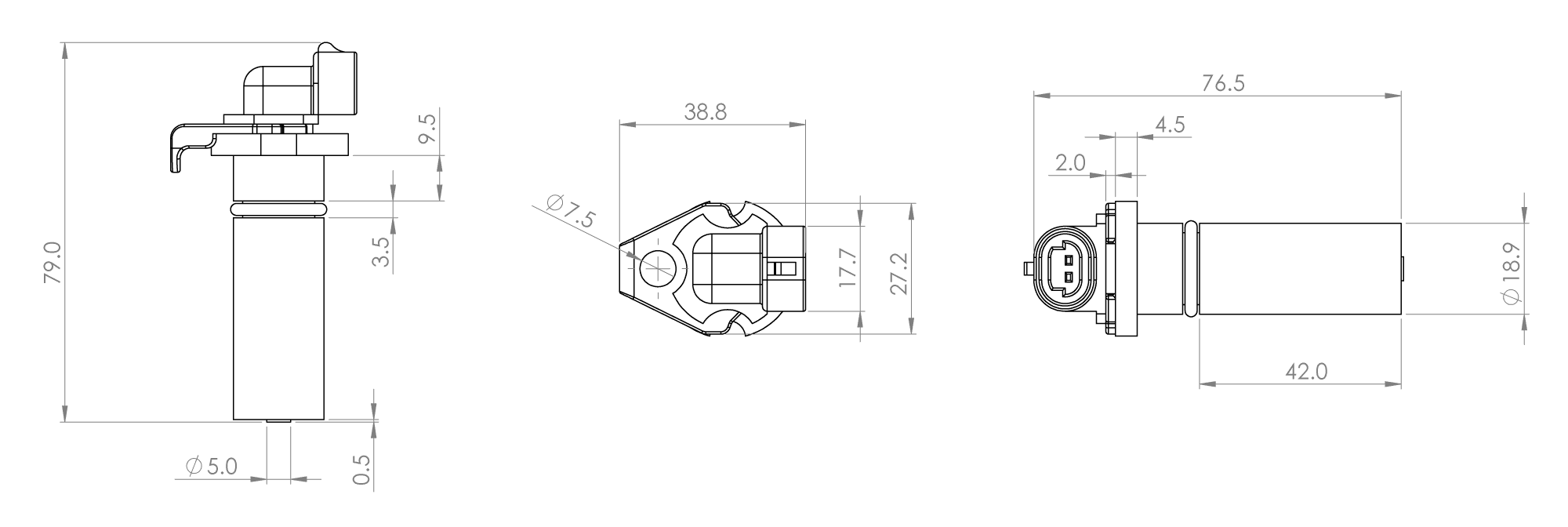

DIMENSIONS

Measurements in mm

PURCHASING

If you are interested in purchasing this product contact an Authorised MoTeC Dealer.
