NTK UEGO
NTK UEGO
NTK UEGO
Part No: #57007

OVERVIEW

The NTK UEGO (Universal Exhaust Gas Oxygen) sensor is a 5 wire Wideband Lambda sensor. It is used to control fuel and ignition systems to optimize a car's performance in the areas of emissions, power or fuel economy.

The Lambda sensor can be connected to

  • M1 ECUs using an LTC - (Lambda to CAN)
  • PLM - (Professional Lambda Meter)
  • Dash/Enclosed Logger
  • Hundered series ECUs with a Lambda upgrade enabled

Lambda gives a measure of the Air to Fuel Ratio (AFR) that is independent of the type of fuel being used.

Lambda 1.00 Stoichiometric ratio: no excess fuel and no excess air
Lambda >1.00 Lean: excess air
Lambda <1.00 Rich: excess fuel

MoTeC ECUs allow for a Lambda aim table based on load and RPM. Referencing the measured Lambda, the Quick Lambda function in the software adjusts the values in the fuel control table at the specified load and RPM site to achieve the aim Lambda.

Similarly, the Lambda Was function adjusts the values in the fuel control table using recorded Lambda measurements from a data log.

ACCESSORIES

  • 59001 – LAMBDA BUNG MILD STEEL WELD-IN 18 x 1.5
  • 59002 – LAMBDA BUNG STAINLESS STEEL WELD-IN 18 x 1.5
  • 65042 – 8 PIN CONNECTOR KIT FOR NTK UEGO FEMALE
  • 61105 – PLM NTK ADAPTOR LOOM

Complete Kit

  • The complete Lambda kit contains a PLM, Bosch LSU 4.9 Lambda sensor, and all required looms and accessories
    • 15002 – PLM - KIT WITH NTK LAMBDA SENSOR 2.5 METRE
    • 15002LL – PLM - KIT WITH NTK LAMBDA SENSOR 6 METRE

SPECIFICATIONS

  • Maximum continuous operating temperature is 850 °C
  • Maximum temperature for a short period is 930 °C (maximum 10 minutes)
  • Mounting torque 45 Nm max
  • Lifetime estimates
    • Sensor lifetimes are highly dependent on application. Typically sensor lifetime for high performance engines is 500 hours in unleaded fuel and 50 hours in leaded fuel.
  • Fuel: Unleaded gasoline, ethanol gasoline blends, methanol, diesel, LNG, CNG, LPG

WIRING

8 Pin Connector

Mating connector # 65042

Pin No Name Colour
1 Heater + Blue
2 Heater - Yellow
3 Rc
4 Rc 0 V
5 Nc
6 Vs Grey
7 Ip White
8 Sensor 0 V Black

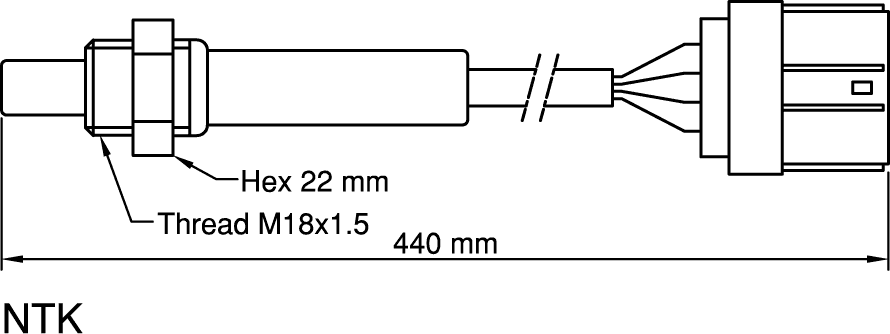

DIMENSIONS

Measurements in mm

PURCHASING

If you are interested in purchasing this product contact an Authorised MoTeC Dealer.
