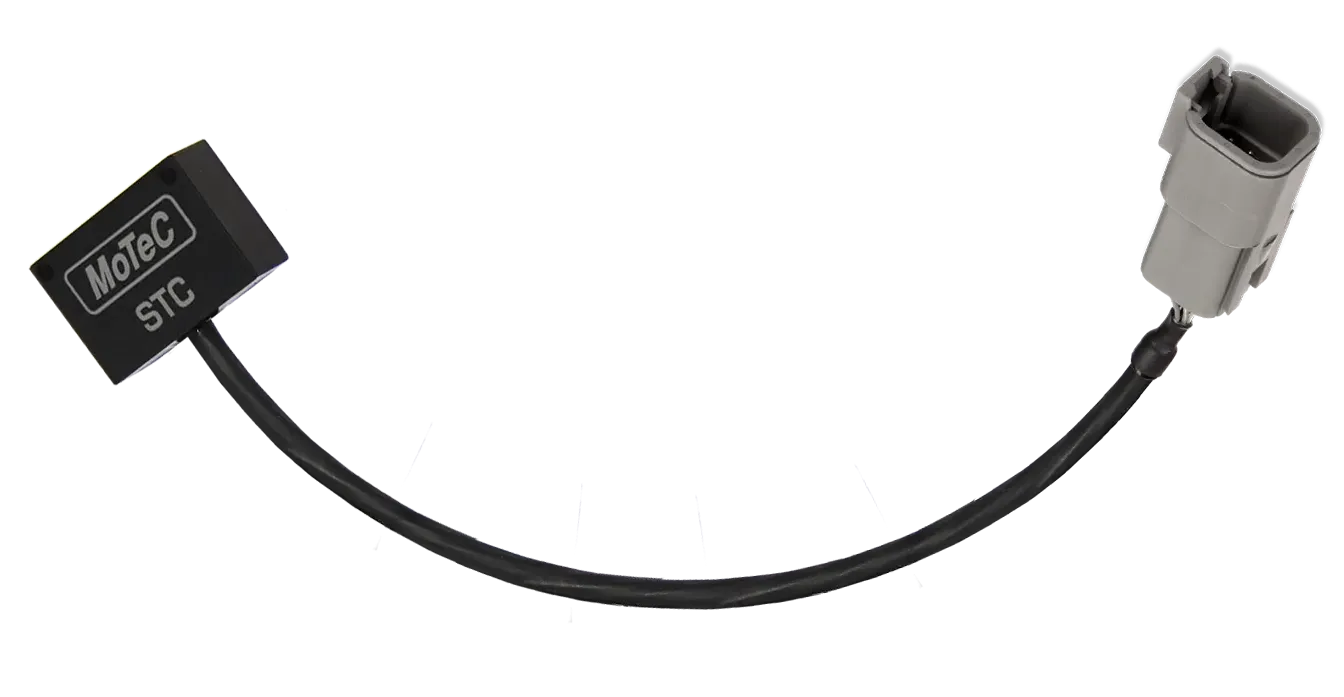

The STC (Serial to CAN) adaptor converts RS232 data to CAN and vice versa allowing multiple RS232 devices to be connected to a Data Logger via CAN

• Resin filled machined anodised aluminium case with through hole fastening
• Flying lead
• Compatible with TTL voltage levels to connect early M4s and all M48s to a Dash Logger
• Bi-directional
  • Converts RS232 to CAN to display and log GPS data —position, true ground speed and GPS beacons— and ECU data
  • Converts CAN to RS232 for transmitting telemetry

• 61059 - MoTeC UTC

Inputs

• Power supply 12 V (9 - 16 VDC)

Communications

• 1 x RS232
  • Baud rates: 9600, 19200, 28800, 38400, 57600
  • Data Length: 7 or 8
  • Parity: None, Even or Odd
  • Stop Bits: 1 or 2
• 1 x CAN
  • Configurable address (default 146h)
  • 1Mbit Baud rateRS232 / CAN settings must be specified when ordering. Currently the STC is non-configurable

Physical

• Case size 38 mm x 14 mm x 26 mm excluding lead

• All MoTeC Data Loggers
• M48 and early M4

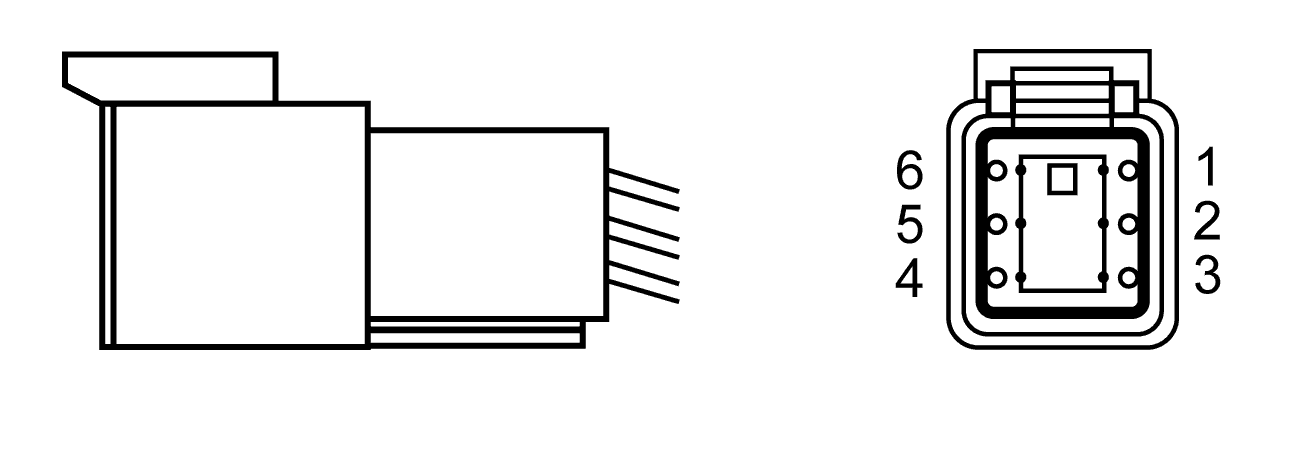

6 pin connector

Mating connector DTM #68056

The STC is wired onto the CAN bus. Please ensure the CAN-bus has at least one 100R terminating resistor.

If you are interested in purchasing this product contact an Authorised MoTeC Dealer.
