Steering Angle Sensor - 10 turns
Steering Angle Sensor - 10 turns
Steering Angle Sensor - 10 turns
Part No: #59103

OVERVIEW

The 10 turn steering angle sensor can be used to measure the steering wheel position, angle and rate of turn.

The position of other rotary adjustments such as brake bias can also be measured.

SPECIFICATIONS

  • Tolerance ± 5 %
  • Resistance 100 Ω to 100 kΩ
  • Rotational travel 3600°
  • Operating temperature range -55°C to 125°C
  • Mounting hole diameter 10 mm
  • Shaft diameter 6.3 mm (¼")

CALIBRATION

Dash Logger / Enclosed Logger

Measurement method = Ratiometric

  • Turn wheel to desired angle & enter angle in deg table.
  • Then click on read value to read sensor.
  • Right turn = positive angles
  • Left turn = negative angles
  • Straight = 0 degree

M1 ECU

  • Open the Sensors Other worksheet
  • Assign the Steering Angle Resource
  • Set the values in the translation table

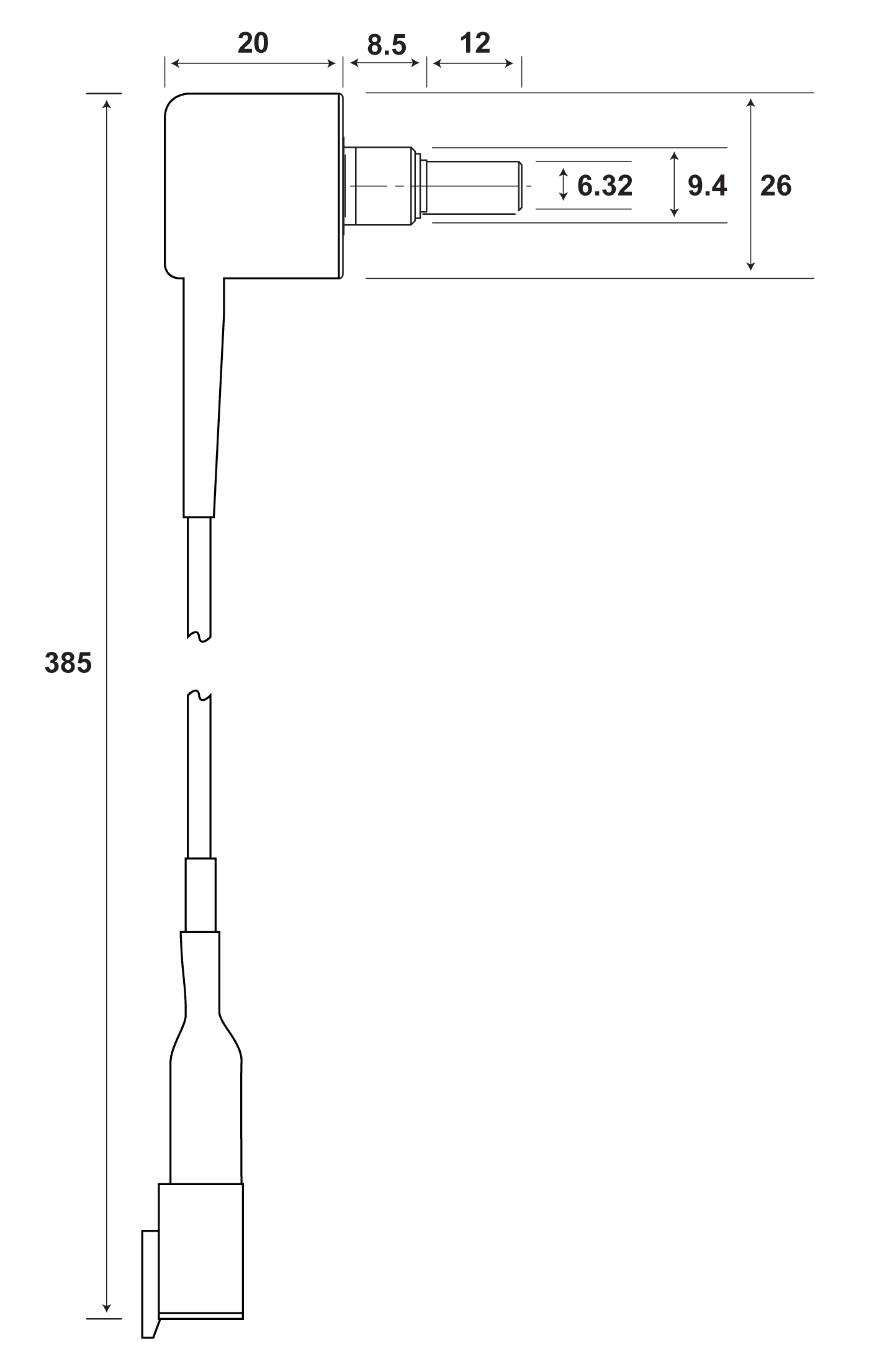

DIMENSIONS

Dimensions in mm

PINOUT

3 Pin Connector

Mating connector # 68052

Pin Name
1 0V
2 Signal output
3 5V

PURCHASING

If you are interested in purchasing this product contact an Authorised MoTeC Dealer.

DOWNLOADS

Position Sensors
Name
Version / Part
Published
Download
Name, Version / Part, Published
Name
Version / Part
Published
Download
Steering Angle Sensor X21 - Wiring Diagram
59005, 59008, 59103, 59104
Jul 2004
Download
Steering Angle Sensor X21 - Wiring Diagram
59005, 59008, 59103, 59104
Jul 2004
Steering Angle Sensor X21 - Wiring Diagram
59005, 59008, 59103, 59104
Jul 2004
Download
