This combined inlet air temperature and 3 Bar Manifold Absolute Pressure (MAP) Sensor is suitable for engine load measurements on forced induction engines.
TMAP Sensor
TMAP Sensor
TMAP Sensor
Part No: #53010
- Pressure operating range 20 to 300 KPa
- Temperature operating range of -40 to 130 °C.
- The Bosch pressure sensor is an analogue sensor with a 0 V to 5 V output. It also includes an inbuilt temperature sensor for measuring air temps

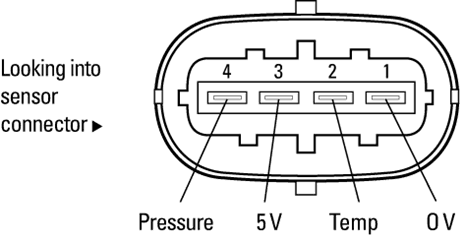

- The pressure sensor signal can be wired to an Analogue Voltage (AV) input on compatible devices, and the temperature sensor can be wired to an Analogue Temperature (AT) input.
Using M1 Tune
For all M1 ECU's
Select Bosch 0281002845.1.0 from drop down list or use manual calibration.
Using the Display/Logger Manager
For all Dash/Loggers.
Use manual calibration.
Manual Calibration Temperature
| °C | -20 | -10 | 0 | 5 | 10 | 15 | 20 | 25 | 30 | 35 |
| V | 4.655 | 4.480 | 4.238 | 4.090 | 3.925 | 3.745 | 3.550 | 3.345 | 3.139 | 2.927 |
| °C | 40 | 45 | 50 | 55 | 60 | 70 | 80 | 90 | 105 | 120 | 130 |
| V | 2.712 | 2.498 | 2.288 | 2.085 | 1.892 | 1.538 | 1.236 | 0.986 | 0.697 | 0.494 | 0.393 |
Manual Calibration Pressure
| Volts | Kilopascals |
|---|---|
| 0.400 V | 20 kPa |
| 4.650 V | 300 kPa |
If you are interested in purchasing this product contact an Authorised MoTeC Dealer.
