Thermocouple Right Angle Tip - 700mm
Thermocouple Right Angle Tip - 700mm
Thermocouple Right Angle Tip - 700mm
Part No: #58016

OVERVIEW

This right angle K type thermocouple is custom made to MoTeC's specification. It is available in a range of lengths allowing for ideal exhaust pipe spacing.

Two MoTeC thermocouple kits are also available that contain 8 right angle thermocouples.

Kit contents:

  • 2 x 600mm # 58015
  • 2 x 700mm # 58016
  • 2 x 800mm # 58017
  • 2 x 900mm # 58018
  • 8 x compression fittings
  • 2 x DTM connector kits

# 58014A Thermocouple Right Angle Drag Kit 1/8 Gas thread.

# 58014B Thermocouple Right Angle Drag Kit 1/4 Gas thread.

This kit is primarily designed for exhaust gas temperature measurement combined with MoTeC's E888 Expander Module #14007.

The E888 has:

  • 8 x thermocouple inputs
  • 2 x external cold junction compensation thermistor inputs
  • 1 x internal cold junction compensation
Allowing for direct connection and cold junction compensation of up to 8 thermocouples without the need for individual TCA thermocouple amplifiers.

SPECIFICATIONS

  • Working temperature 0 to 1150°C
  • 6.35mm Ø Sensing probe
  • DTM male pin (Gold coated)
  • Stainless steel braided wire sheath
  • Total length 700 mm

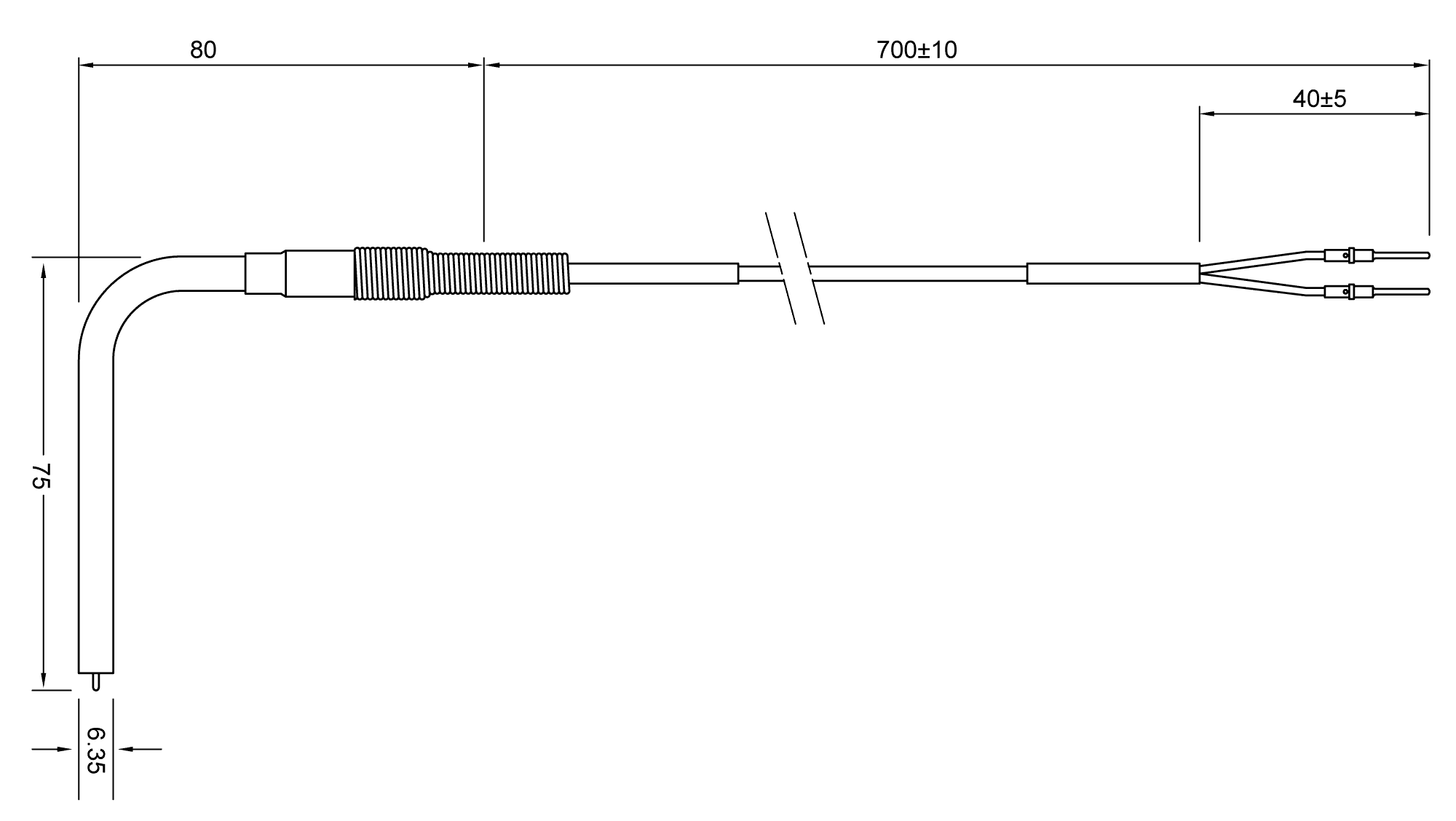

DIMENSIONS

Measurements in mm

PINOUT

Flying lead with DTM male pins (Gold coated)

Wiring code ANSI WC 96.1

Wire colour Name
Red wire Negative
Yellow Wire Positive

The wires in the thermocouple are made from Nickel – Alumel (Negative Leg) and Nickel – Chromel (Positive Leg).

These dissimilar metals are critical for the operation of the thermocouple. Extension wiring must only be made from these metals. Copper wire and other connector types cannot be used unless cold junction compensation is employed at the connection.

PURCHASING

If you are interested in purchasing this product contact an Authorised MoTeC Dealer.
