Water Temperature Sensor
Water Temperature Sensor
Water Temperature Sensor
Part No: #55001

OVERVIEW

The Bosch water temperature sensor is an analogue sensor with a general working range of -10 to 120 °C.

SPECIFICATIONS

  • The Bosch water temperature sensor is an analogue sensor with a 0 to 5 V output (working range is generally 0.5 V to 4.5 V).
  • The sensor signal wire can be used with any Analogue Temperature (AT) input on compatible devices.
  • 19 mm Hex
  • M 12 x 1.5 mm thread

COMPATIBILITY

  • All MoTeC ECUs
  • All MoTeC Dash/Enclosed loggers

CALIBRATION

Using M1 Tune

For all M1 ECU's.

Use the predefined calibration: Bosch 0 280 130 026.

Using the Display/Logger Manager

For all Dash/Loggers.

Use the predefined calibration: Bosch 0 280 130 026.

Manual Calibration
°C -40 -30 -20 -10 0 10 20 30 40 50 60
V 4.845 4.770 4.653 4.479 4.239 3.926 3.546 3.133 2.687 2.263 1.859
°C 70 80 90 100 110 120 130 140 150 160
V 1.513 1.216 0.976 0.785 0.629 0.506 0.410 0.332 0.271 0.224

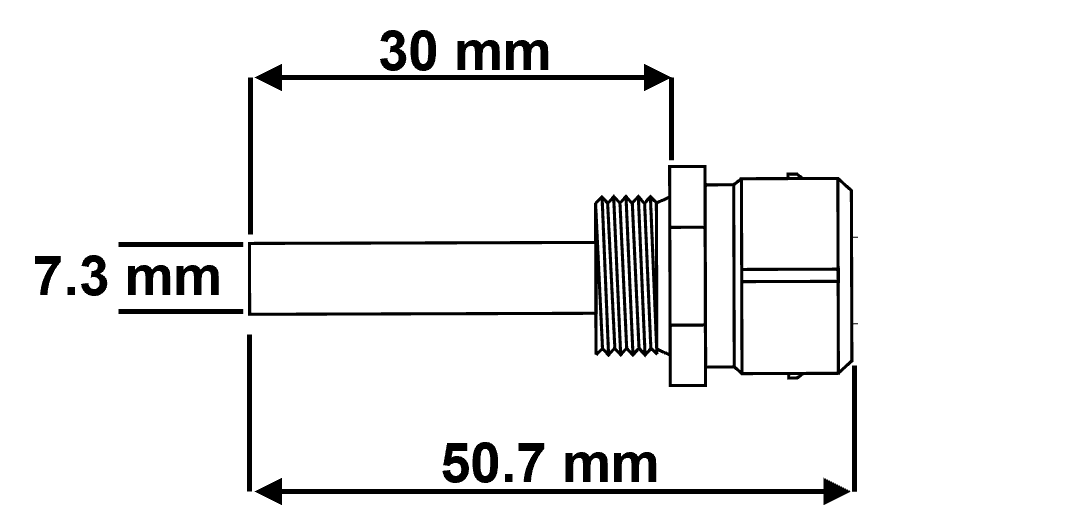

DIMENSIONS

Dimensions in mm

PINOUT

2 Pin Connector

Mating connector # 64004

  • Connection is to a 0 V sensor ground, to the same device that is reading the signal.
  • Both the 0 V and signal connection have no specific polarity and can be wired either way.

PURCHASING

If you are interested in purchasing this product contact an Authorised MoTeC Dealer.
