Two Button Loom
Two Button Loom
Two Button Loom
Part No: #61221

OVERVIEW

The Two Button Loom is designed as a plug-in solution for MoTeC Display Logger Track and Race Kits. The buttons provide Alarm Acknowledge (red), Next Line (green) and Mode functionality for the Display provided with the kit.

On its own it is also a simple solution for adding buttons to other MoTeC ECU and Display Logger products.

FEATURES

If your installation requires more than two buttons, the 6 pin DTM has 3 spare sockets for adding extra buttons. If additional buttons are required for use with a Track or Race Display/Logger, the I/O upgrade is needed.

OPTIONAL UPGRADES

An optional terminated Curly Cord loom is available when buttons are to be located on a steering wheel.

  • 61222 – CURLY CORD LOOM TERMINATED

SPECIFICATIONS

  • Momentary (non-latching) push buttons
  • Button mounting holes: 6.2 mm (¼")
  • Loom length: 285 mm - button mounting surface to back of DTM6F connector
  • Weight: 35 g

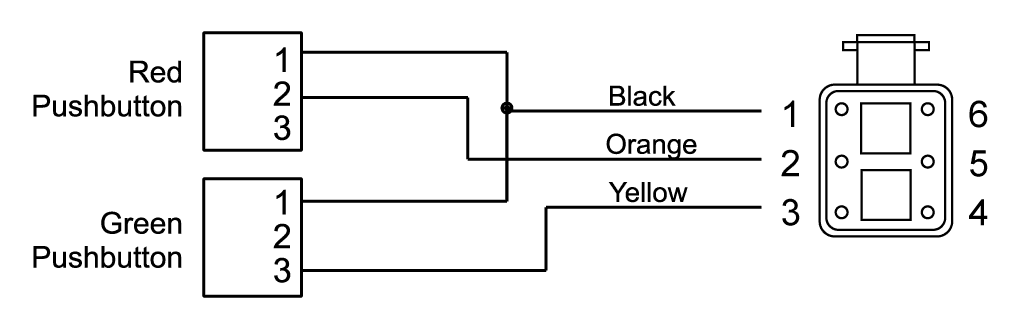

WIRING

6 Pin Connector

Mating connector DTM #68056

Pin No Colour Description
1 Black Common
2 Orange Red button
3 Yellow Green button

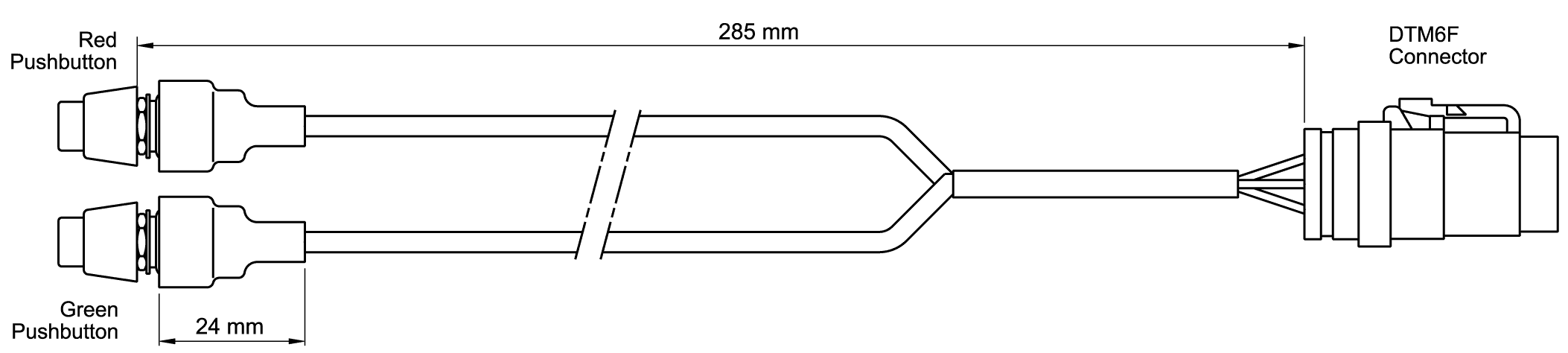

DIMENSIONS

Dimensions in mm

PURCHASING

If you are interested in purchasing this product contact an Authorised MoTeC Dealer.
